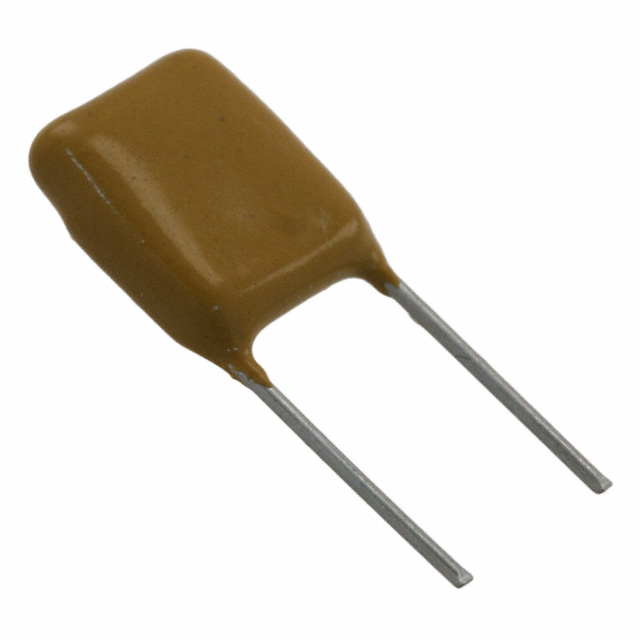

C340C155M1U5TA

Active

KEMET

CAP CER 1.5UF 100V Z5U RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C340C155M1U5TA

C340C155M1U5TA

Active

KEMET

CAP CER 1.5UF 100V Z5U RADIAL

Deep-Dive with AI

DocumentsDatasheet C340C155M1U5TA

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C340C155M1U5TA

Applications	General Purpose
Capacitance	1.5 µF
Height - Seated (Max) [Max] [z]	11.68 mm
Height - Seated (Max) [Max] [z]	0.46 in
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max] [custom]	85 °C
Operating Temperature [Min] [custom]	10 °C
Package / Case	Radial
Size / Dimension [x]	0.29 in, 7.36 mm
Size / Dimension [y]	4.07 mm, 0.16 in
Temperature Coefficient	Z5U
Tolerance	20 %
Voltage - Rated	100 V

C340C Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Tolerance	Temperature Coefficient	Capacitance	Mounting Type	Voltage - Rated	Applications	Lead Style	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]
KEMET C340C475M5U5TA	12.7 mm	0.5 in	0.16 in 4.07 mm	0.29 in 7.36 mm	Radial	5.08 mm	0.2 in	10 °C	85 °C	20 %	Z5U	4.7 µF	Through Hole	50 VDC	General Purpose	Straight
KEMET C340C331JHG5TA			0.27 in 6.85 mm	10.16 mm	Radial	5.08 mm	0.2 in			5 %	C0G NP0	330 pF	Through Hole		General Purpose	Straight	14.22 mm	0.56 "	-55 °C	125 °C	High Voltage Low ESL
KEMET C340C225M5U5TA	10.16 mm	0.4 in	0.16 in 4.07 mm	0.29 in 7.36 mm	Radial	5.08 mm	0.2 in	10 °C	85 °C	20 %	Z5U	2.2 µF	Through Hole	50 VDC	General Purpose	Straight
KEMET C340C124KDR5TA			3.81 mm	10.16 mm	Radial	5.08 mm	0.2 in			10 %	X7R	0.12 µF	Through Hole	1000 V	General Purpose	Straight	14.22 mm	0.56 "	-55 °C	125 °C	High Voltage	1 kV	0.4 in	0.15 "
KEMET C340C103JDG5TA			0.27 in 6.85 mm	10.16 mm	Radial	5.08 mm	0.2 in			5 %	C0G NP0	10000 pF	Through Hole	1000 V	General Purpose	Straight	14.22 mm	0.56 "	-55 °C	125 °C	High Voltage Low ESL	1 kV
KEMET C340C563J1G5TA	12.7 mm	0.5 in	0.16 in 4.07 mm	0.29 in 7.36 mm	Radial	5.08 mm	0.2 in			5 %	C0G NP0	0.056 µF	Through Hole	100 V	General Purpose	Straight			-55 °C	125 °C	Low ESL
KEMET C340C105K1R5TA	10.16 mm	0.4 in	0.16 in 4.07 mm	0.29 in 7.36 mm	Radial	5.08 mm	0.2 in			10 %	X7R	1 µF	Through Hole	100 V	General Purpose	Formed Leads			-55 °C	125 °C
KEMET C340C752JDG5TA			0.27 in 6.85 mm	10.16 mm	Radial	5.08 mm	0.2 in			5 %	C0G NP0	7500 pF	Through Hole	1000 V	General Purpose	Straight	14.22 mm	0.56 "	-55 °C	125 °C	High Voltage Low ESL	1 kV
KEMET C340C155M1U5TA	11.68 mm	0.46 in	0.16 in 4.07 mm	0.29 in 7.36 mm	Radial	5.08 mm	0.2 in	10 °C	85 °C	20 %	Z5U	1.5 µF	Through Hole	100 V	General Purpose	Straight
KEMET C340C333J2G5TA	12.7 mm	0.5 in	0.16 in 4.07 mm	0.29 in 7.36 mm	Radial	5.08 mm	0.2 in			5 %	C0G NP0	0.033 çF	Through Hole	200 V	General Purpose	Straight			-55 °C	125 °C	Low ESL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.76
		10	$ 2.12
		100	$ 1.62
		1000	$ 1.14
		5000	$ 1.06

Description

General part information

C340C Series

1.5 µF ±20% 100V Ceramic Capacitor Z5U Radial

Documents

Technical documentation and resources

Datasheet

C340C155M1U5TA

Datasheet
