2006-1307

Active

WAGO Corporation

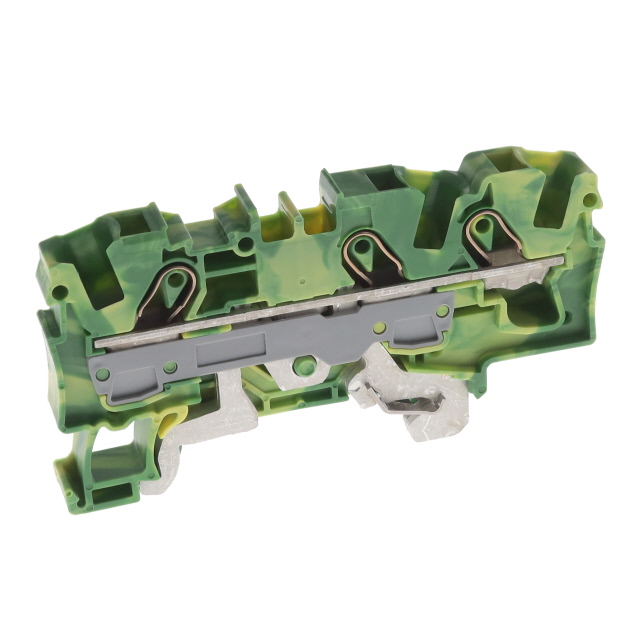

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 8 AWG, 6 MM², CLAMP

Search across all available documentation for this part.

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 8 AWG, 6 MM², CLAMP

Technical Specifications

Parameters and characteristics commom to parts in this series

DIN RAIL MOUNT TERMINAL BLOCK, 3 POSITIONS, 20 AWG, 8 AWG, 6 MM², CLAMP

Part	Terminal - Width	Color	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Stripping Length [Min]	Stripping Length [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material - Insulation	Type	Number of Levels	Current - UL	Voltage - UL	Current - IEC	Voltage - IEC
WAGO Corporation 2006-1307	7.5 mm	Green, Yellow	Push In, Spring	10 mm²	2.5 mm²	13 mm	15 mm	14 AWG	8 AWG	Polyamide (PA66), Nylon 6/6	Ground, Earth	1
WAGO Corporation 2006-1301	7.5 mm	Gray	Push In, Spring	10 mm²	2.5 mm²	13 mm	15 mm	14 AWG	8 AWG	Polyamide (PA66), Nylon 6/6	Feed Through	1	50 A	600 V	57 A	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 3 Position Ground, Earth Green, Yellow 8-14 AWG
