HEEE-040-F 41-80
ActiveTE Connectivity AMP Connectors

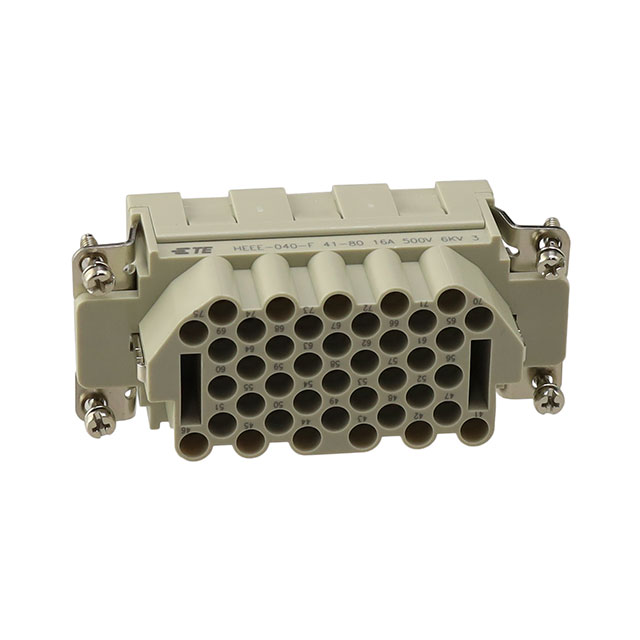

INS FML 40P+1GD HEEE-040-F 41-80
Deep-Dive with AI
Search across all available documentation for this part.
HEEE-040-F 41-80
ActiveTE Connectivity AMP Connectors
INS FML 40P+1GD HEEE-040-F 41-80
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HEEE-040-F 41-80 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | CEF, DEF |
| Current Rating (Amps) | 16 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 |
| Number of Positions | 40+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.97 | |
| 10 | $ 6.07 | |||
| 25 | $ 5.91 | |||
| 50 | $ 5.75 | |||
| 100 | $ 5.63 | |||
T2050802201 Series
INS FML 40P+1GD HEEE-040-F 41-80
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Current Rating (Amps) | Connector Type | Voltage Rating | Termination Style | Number of Positions | Contact Type | Size | Housing Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEEE-040-F 41-80 | 125 °C | -40 °C | Female | 16 A | Insert without Contacts | 500 V | Crimp | 40+Ground | CEF, DEF | H16B | Polycarbonate (PC) | EN45545 |
Description
General part information
T2050802201 Series
Female Insert without Contacts 40+Ground Position Crimp
Documents
Technical documentation and resources
No documents available
