Q-0E03D0008012i

Active

Amphenol Custom Cable

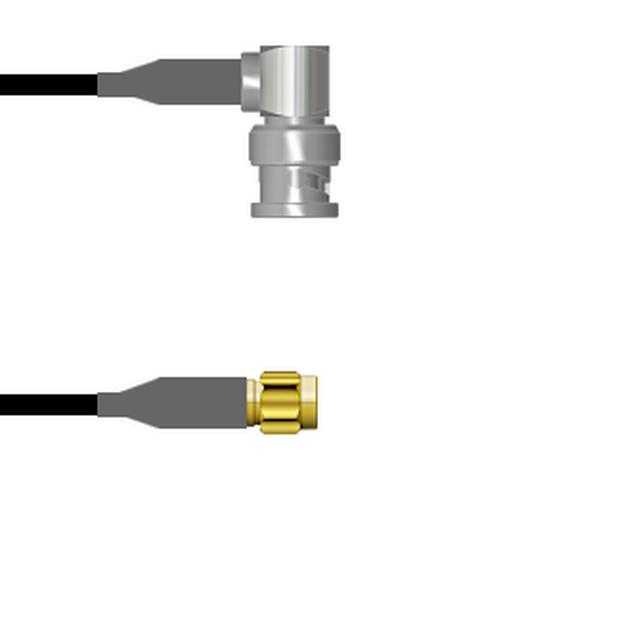

CBL ASSY BNC-SMA PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E03D0008012i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E03D0008012i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0E03D0 Series

Part	1st Connector	2nd Connector Mounting Type	Style	2nd Contact Gender	Overall Impedance	Length	Length	1st Contact Gender	Cable Type	Features	Color	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0E03D0008036i	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	91.44 cm	36 in	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E03D00080.5M	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	50 cm	19.69 "	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E03D0008108i	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	2.7 m	108 in	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)	9 ft
Amphenol Custom Cable Q-0E03D0008.25M	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms			Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)		9.843 "	250 mm
Amphenol Custom Cable Q-0E03D0008024i	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	609.6 mm	24 "	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E03D0008012i	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	304.8 mm	12 "	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E03D0008.75M	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	750 mm	29.53 "	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)
Amphenol Custom Cable Q-0E03D0008072i	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	1.8 m	72 in	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-0E03D0008060i	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	1.5 m	5 '	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0E03D0008009i	BNC Plug Right Angle	Free Hanging (In-Line)	BNC to SMA	Male	50 Ohms	228.6 mm	9 "	Male	RG-58	Shielded	Black	4 GHz	SMA Plug	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.40
		25	$ 83.73
		50	$ 82.07
		100	$ 80.40
		250	$ 78.73

Description

General part information

Q-0E03D0 Series

Cable Assembly Coaxial BNC to SMA RG-58 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
