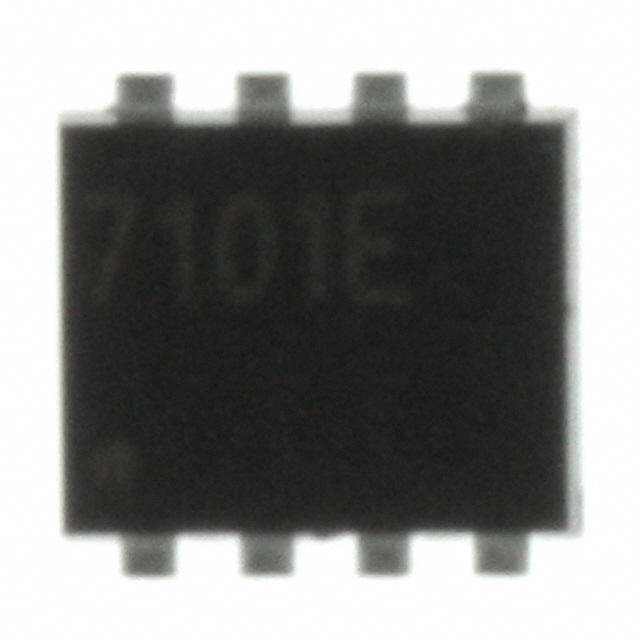

TB7101F(T5L3.3,F)
ObsoleteToshiba Semiconductor and Storage
IC REG BUCK 3.3V 1A PS-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB7101F(T5L3.3,F)
ObsoleteToshiba Semiconductor and Storage
IC REG BUCK 3.3V 1A PS-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB7101F(T5L3.3,F) |
|---|---|
| Current - Output | 1 A |
| Frequency - Switching | 1 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Supplier Device Package | PS-8 |
| Supplier Device Package [x] | 2.9 |
| Supplier Device Package [y] | 2.4 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.3 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TB7101 Series
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 1A 8-SMD, Flat Leads
Documents
Technical documentation and resources
