3781-36-0

Active

Pomona Electronics

MINIGRABBER® TEST CLIP PATCH CORD, 36", BLACK

Find alt

Alpha

3781-36-0

Active

Pomona Electronics

MINIGRABBER® TEST CLIP PATCH CORD, 36", BLACK

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

3781 Series

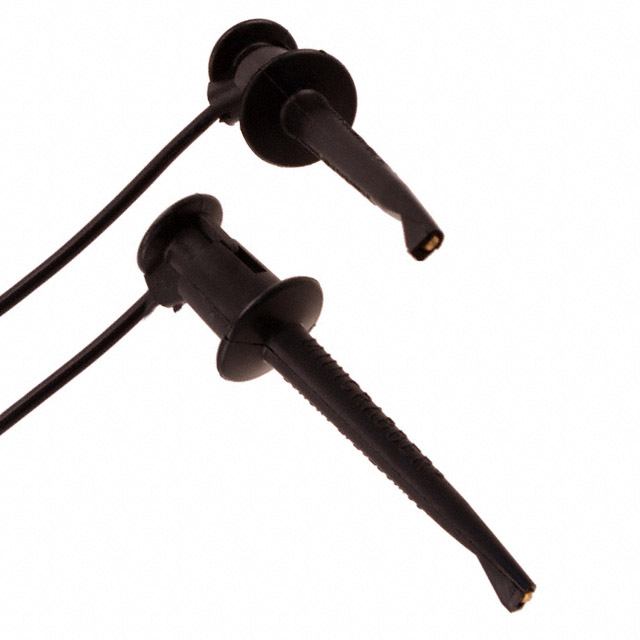

The 3781-36-0 is a patch cord with Minigrabber® Test Clips on both ends, with cable length of 36-inches and is in black. The patch cord is ideal for making temporary jumper connections on terminals and wire wrap posts. The Minigrabber® insulation is glass filled nylon with gold plated beryllium copper contacts, on 20 AWG PVC wire.

Technical Specifications

Parameters and characteristics for this part

Specification	3781-36-0

1st Connector	Mini Hook
2nd Connector	Mini Hook
Cable Length	914.4 mm
Configuration	Hook to Grabber, Hook, Grabber
Contents	Black
Current Rating	5 A
Lead Quantity	1
Material - Insulation	PVC, Poly-Vinyl Chloride
Temperature Range (Single)	216 °F
Voltage - Rated	60 VDC, 30 VAC
Wire Gauge	20 AWG

3781 Series

Part	Lead Quantity	Contents	Wire Gauge	Temperature Range (Single)	Voltage - Rated	Configuration	1st Connector	2nd Connector	Current Rating	Cable Length	Material - Insulation
Pomona Electronics 3781-60-4	1	Yellow	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	60 in	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-12-9	1	White	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	12 in	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-8-5	1	Green	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	8 in	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-12-7	1	Violet	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	12 in	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-24-9	1	White	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	24 in	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-24-3	1	Orange	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	24 in	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-18-4	1	Yellow	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	18 "	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-36-3	1	Orange	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	914.4 mm	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-12-3	1	Orange	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	12 in	Poly-Vinyl Chloride PVC
Pomona Electronics 3781-8-4	1	Yellow	20 AWG	216 °F	30 VAC 60 VDC	Grabber Hook Hook to Grabber	Mini Hook	Mini Hook	5 A	8 in	Poly-Vinyl Chloride PVC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
