3781-8-5

Active

Pomona Electronics

MINI HOOK TO MINI HOOK 8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3781-8-5

Active

Pomona Electronics

MINI HOOK TO MINI HOOK 8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3781-8-5

1st Connector	Mini Hook
2nd Connector	Mini Hook
Cable Length	8 "
Cable Length	203.2 mm
Configuration	Hook to Grabber, Hook, Grabber
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	216 °F
Temperature Range	102 °C
Voltage - Rated [custom]	60 VDC, 30 VAC
Wire Gauge	20 AWG

3781 Series

Part	Contents	Current Rating (Amps)	Material - Insulation	2nd Connector	Cable Length	Cable Length	1st Connector	Temperature Range	Temperature Range	Configuration	Voltage - Rated [custom]	Wire Gauge
Pomona Electronics 3781-60-4	1 Lead Yellow	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	1524 mm	5 ft	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-12-9	1 Lead White	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	304.8 mm	12 in	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-8-5		5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	203.2 mm	8 "	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-12-7	1 Lead Violet	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	304.8 mm	12 in	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-24-9	1 Lead White	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	609.6 mm	24 "	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-18-4	1 Lead Yellow	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	457.2 mm	18 in	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-36-3	1 Lead Orange	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	914.4 mm	36 in	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-12-3	1 Lead Orange	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	304.8 mm	12 in	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-8-4	1 Lead Yellow	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	203.2 mm	8 "	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG
Pomona Electronics 3781-18-0	1 Lead Black	5 A	Poly-Vinyl Chloride (PVC)	Mini Hook	457.2 mm	18 in	Mini Hook	216 °F	102 °C	Grabber Hook Hook to Grabber	30 VAC 60 VDC	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 6.79

Description

General part information

3781 Series

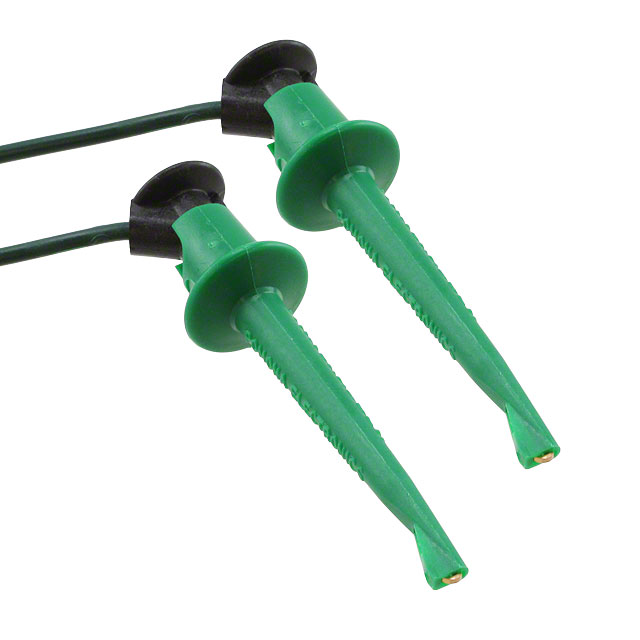

8.0" (203.20mm) Mini Hook To Mini Hook Test Lead 30VAC, 60VDC 1 Lead, Green
