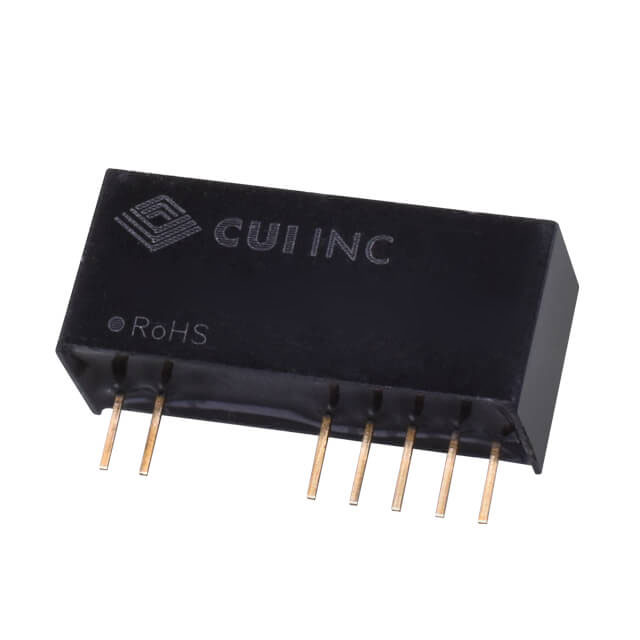

PRQ3W-Q48-D55-S
CUI Inc.
DC DC CONVERTER 5V 5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
PRQ3W-Q48-D55-S
CUI Inc.
DC DC CONVERTER 5V 5V 3W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PRQ3W-Q48-D55-S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 300 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 27.4 mm |
| Size / Dimension [x] | 1.08 " |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [y] | 9.5 mm |
| Size / Dimension [z] | 0.47 " |
| Size / Dimension [z] | 12 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 18 | $ 12.01 | |
Description
General part information
PRQ3W Series
Isolated Module DC DC Converter 2 Output 5V 5V 300mA, 300mA 18V - 75V Input
