Q-2B07300132.5M

Active

Amphenol Custom Cable

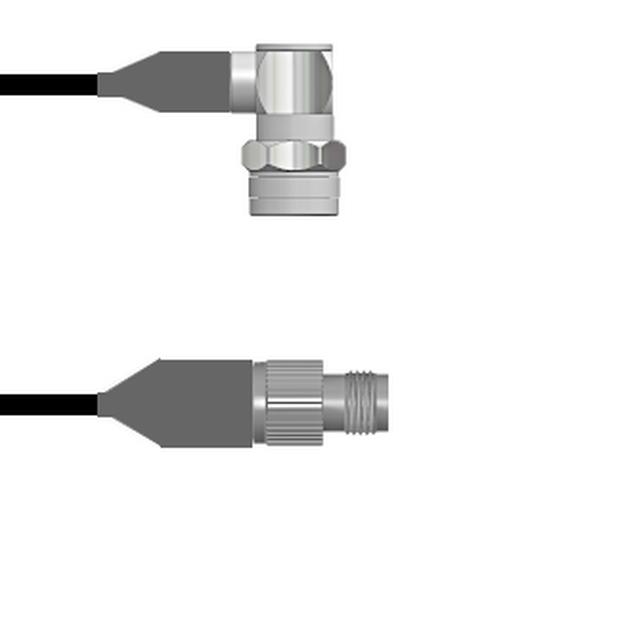

CBL ASSY NTYPE-TNC PLG-JACK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2B07300132.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLG-JACK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2B07300132.5M

1st Connector	N-Type Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms

Q-2B0730 Series

Part	1st Connector	Color	2nd Contact Gender	Cable Type	Overall Impedance	Frequency - Max [Max]	Length [x]	Length [x]	Features	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Connector	1st Contact Gender	Length	Length	Length
Amphenol Custom Cable Q-2B0730013018i	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz	457.2 mm	457.2 mm	Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male
Amphenol Custom Cable Q-2B07300130.5M	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	50 cm	19.69 "
Amphenol Custom Cable Q-2B0730013108i	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	2.7 m	108 in	9 ft
Amphenol Custom Cable Q-2B07300132.5M	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	2.5 m	98.4 in	8.2 '
Amphenol Custom Cable Q-2B07300131.5M	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	1.5 m	59.1 in	4.9 ft
Amphenol Custom Cable Q-2B0730013084i	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	2.1 m	84 in	7 ft
Amphenol Custom Cable Q-2B0730013072i	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	1.8 m	72 in	6 ft
Amphenol Custom Cable Q-2B0730013060i	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	1.5 m	5 '	5 ft
Amphenol Custom Cable Q-2B0730013036i	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	91.44 cm	36 in
Amphenol Custom Cable Q-2B0730013003M	N-Type Plug Right Angle	Black	Female	LMR 400	50 Ohms	6000 MHz			Shielded	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Jack	Male	3 m	118.1 in	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 156.89
		25	$ 146.33
		50	$ 135.77
		100	$ 126.72
		250	$ 119.17

Description

General part information

Q-2B0730 Series

Cable Assembly Coaxial N-Type to TNC LMR 400 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
