MAXM17905AMB+
ActiveAnalog Devices Inc./Maxim Integrated

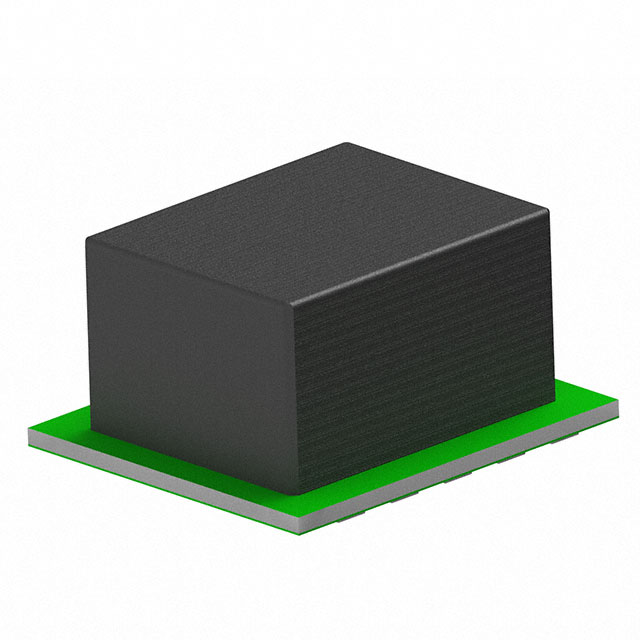

DC DC CONVERTER 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17905AMB+
ActiveAnalog Devices Inc./Maxim Integrated
DC DC CONVERTER 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17905AMB+ | MAXM17905 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Board Type | - | Fully Populated |
| Current - Output | - | 300 mA |
| Current - Output (Max) [Max] | 300 mA | 300 mA |
| Features | OCP, OTP | OCP, OTP |
| Frequency - Switching | - | 550 kHz |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | 10-SMD Module | 10-SMD Module |
| Regulator Topology | - | Buck |
| Size / Dimension [x] | 0.12 in | 0.12 in |
| Size / Dimension [x] | 3 mm | 3 mm |
| Size / Dimension [y] | 0.1 in | 0.1 in |
| Size / Dimension [y] | 2.6 mm | 2.6 mm |
| Size / Dimension [z] | 0.06 " | 0.06 " |
| Size / Dimension [z] | 1.5 mm | 1.5 mm |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 10-eMGA | 10-eMGA |
| Supplier Device Package [x] | 3 | 3 |
| Supplier Device Package [y] | 2.6 | 2.6 |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Utilized IC / Part | - | MAXM17905 |
| Voltage - Input | - | 24 V |
| Voltage - Input | - | 8.5 V |
| Voltage - Input (Max) [Max] | 24 V | 24 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output | - | 5 V |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAXM17905 Series
EVAL BUCK MOD MAXM17905
| Part | Regulator Topology | Voltage - Output | Main Purpose | Board Type | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Supplied Contents | Current - Output | Frequency - Switching | Outputs and Type | Outputs and Type | Features | Voltage - Input (Max) [Max] | Applications | Mounting Type | Current - Output (Max) [Max] | Voltage - Output 1 | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Package / Case | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17905EVKIT# | Buck | 5 V | DC/DC, Step Down | Fully Populated | 24 V | 8.5 V | MAXM17905 | Board(s) | 300 mA | 550 kHz | Non-Isolated | 1 | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17905AMB+ | OCP, OTP | 24 V | ITE (Commercial) | Surface Mount | 300 mA | 5 V | 10-eMGA | 2.6 | 3 | 10-SMD Module | 1 | 125 °C | -40 °C | Non-Isolated PoL Module | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 4.5 V | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17905AMB+T | OCP, OTP | 24 V | ITE (Commercial) | Surface Mount | 300 mA | 5 V | 10-eMGA | 2.6 | 3 | 10-SMD Module | 1 | 125 °C | -40 °C | Non-Isolated PoL Module | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 4.5 V |
Description
General part information
MAXM17905 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5V 300mA 4.5V - 24V Input
Documents
Technical documentation and resources
