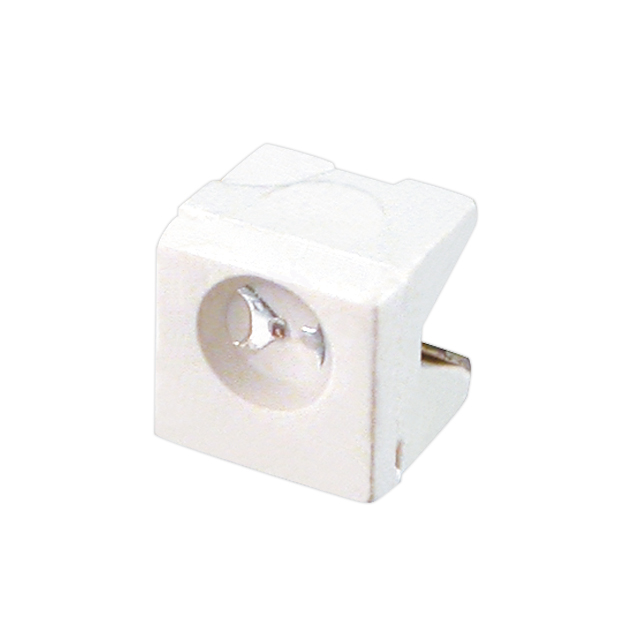

Specification	AA4040ZGCKT

Color	Green
Configuration	Independent
Current - Test	20 mA
Height (Max)	4.1 mm
Lens Color	Colorless
Lens Diameter	2.4 mm
Lens Style	Round, Flat Top
Lens Transparency	Clear
Millicandela Rating	800 mcd
Mounting Type	Right Angle, Surface Mount
Package / Case	2-SMD, Boomerang
Package Name	2-SMD
Size / Dimension Length	3.6 mm
Size / Dimension Width	4 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	525 nm
Wavelength - Peak	515 nm

AA4040 Series

Part	Lens Color	Color	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Red)	Lens Style	Lens Diameter	Viewing Angle	Lens Transparency	Current - Test (Green)	Current - Test Colors	Current - Test (Red)	Package Name	Height (Max)	Package / Case	Mounting Type	Wavelength - Peak Colors	Wavelength - Peak (Green)	Wavelength - Peak (Red)	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Green)	Wavelength - Peak	Configuration	Wavelength - Dominant	Current - Test	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Orientation	Current - Dark (Id) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Wavelength	Power - Max
Kingbright AA4040SRCGKC-R	Colorless	Green Red	Green Red	570 nm	640 nm	Flat Top Round	2.4 mm	120 °	Clear	20 mA	Green Red	20 mA	SMD	4.1 mm	2-SMD Boomerang	Right Angle Surface Mount	Green Red	574 nm	655 nm	3.6 mm	4 mm	Green Red	1.85 V	2.1 V	Green Red	200 mcd	90 mcd
Kingbright AA4040QBC/D	Colorless	Blue				Flat Top Round	2.4 mm	90 °	Clear				SMD	4 mm	2-SMD Boomerang	Right Angle Surface Mount				3.6 mm	4 mm							468 nm	Standard	470 nm	20 mA	3.3 V	150 mcd
Kingbright AA4040SRSYKCT-R	Colorless	Red				Flat Top Round	2.4 mm	120 °	Clear				SMD	4.25 mm	2-SMD Boomerang	Right Angle Surface Mount				3.6 mm	4 mm							655 nm	Standard	640 nm	20 mA	1.85 V	60 mcd
Kingbright AA4040SGS	Colorless	Green				Flat Top Round	2.4 mm	120 °	Clear				SMD	4 mm	2-SMD Boomerang	Right Angle Surface Mount				3.6 mm	4 mm							565 nm	Standard	568 nm	20 mA	2.2 V	30 mcd
Kingbright AA4040SURCK	Colorless	Red				Flat Top Round	2.4 mm	90 °	Clear				SMD	4 mm	2-SMD Boomerang	Right Angle Surface Mount				3.6 mm	4 mm							650 nm	Standard	630 nm	20 mA	1.95 V	250 mcd
Kingbright AA4040QBS/D	Colorless	Blue				Flat Top Round	2.4 mm	120 °	Clear				SMD	4 mm	2-SMD Boomerang	Right Angle Surface Mount				3.6 mm	4 mm							460 nm	Standard	465 nm	20 mA	3.3 V	220 mcd
Kingbright AA4040P3C-P22								120 °							2-SMD Boomerang	Right Angle Surface Mount																		30 V	0.0006 µA	Side View	100 nA	-40 °C	85 °C	940 nm	100 mW
Kingbright AA4040ZGCKT	Colorless	Green				Flat Top Round	2.4 mm	120 °	Clear				2-SMD	4.1 mm	2-SMD Boomerang	Right Angle Surface Mount				4 mm	3.6 mm							515 nm	Independent	525 nm	20 mA	3.3 V	800 mcd
Kingbright AA4040CGCK	Colorless	Green				Flat Top Round	2.4 mm	120 °	Clear				SMD	4 mm	2-SMD Boomerang	Right Angle Surface Mount				3.6 mm	4 mm							574 nm	Standard	570 nm	20 mA	2.1 V	70 mcd
Kingbright AA4040SGC	Colorless	Green				Flat Top Round	2.4 mm	90 °	Clear				SMD	4 mm	2-SMD Boomerang	Right Angle Surface Mount				3.6 mm	4 mm							565 nm	Standard	568 nm	20 mA	2.2 V	25 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AA4040ZGCKT | Datasheet
