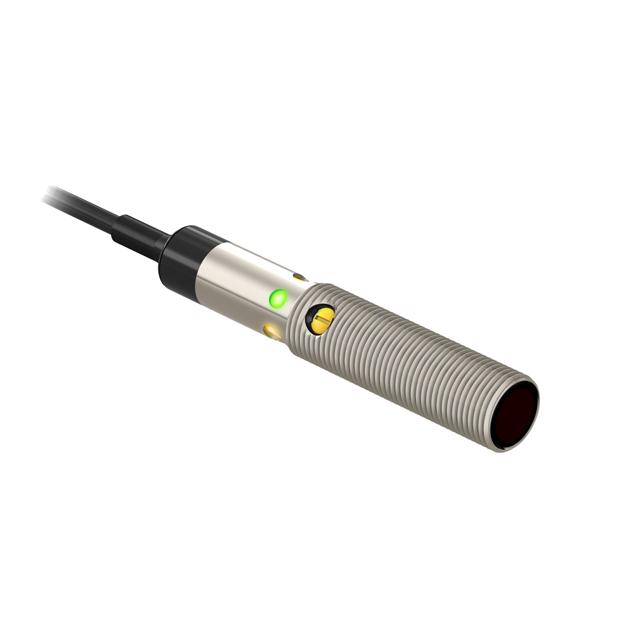

M12NLV

Active

BANNER ENGINEERING

SENSOR RETROREFLECTIVE 2.5M NPN

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SENSOR RETROREFLECTIVE 2.5M NPN

Technical Specifications

Parameters and characteristics for this part

Specification	M12NLV

Adjustment Type	Adjustable, 1-Turn Potentiometer
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IP68, IEC, IP67
Light Source	Red (660nm)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN
Response Time	500 µs
Sensing Distance	2.5 m
Sensing Distance	8.2 ft
Sensing Method	Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Output Configuration	Adjustment Type	Sensing Method	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length	Sensing Distance	Sensing Distance	Response Time	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source
BANNER ENGINEERING M12NLV	NPN	Adjustable 1-Turn Potentiometer	Retroreflective	Cable	-20 C	60 °C	78.74 in	2 m	2.5 m	8.2 ft	500 µs	IEC IP67 IP68 NEMA 6P	30 VDC	10 VDC	Red (660nm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 110.00
Newark	Each	1	$ 110.00

General part information

Retroreflective Optical Sensor 8.20' (2.5m) NPN
