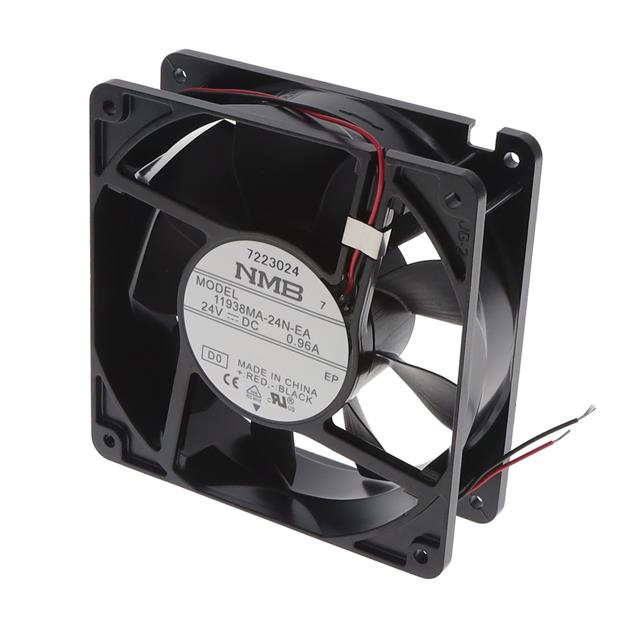

11938MA-24N-EA-D0

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNMB IP69K App Notes Datasheet

11938MA-24N-EA-D0

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X38.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsNMB IP69K App Notes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11938MA-24N-EA-D0

Air Flow	162.1 CFM
Air Flow	4.59 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.74 A
Fan Type	Tubeaxial
Features	Auto Restart
Ingress Protection	IP69K
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	56.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	17.8 W
RPM	4200 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.69 in H2O
Static Pressure	171.8 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [y]	38.4 mm

11938MA Series

Part	Static Pressure	Static Pressure	Material - Frame	Noise	Voltage Range [Min]	Voltage Range [Max]	Features	Air Flow	Air Flow	Ingress Protection	Width [y]	Fan Type	Lifetime @ Temp.	Power (Watts)	Voltage - Rated	Bearing Type	Termination	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated [custom]	RPM
NMB TECHNOLOGIES 11938MA-24P-ET-D0	214.2 Pa	0.86 in H2O	Aluminum	59.5 dB	15	26.4 VDC	Auto Restart Speed Sensor (Tach)	5.13 m³/min	181.2 CFM	IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs	22.4 W	24 VDC	Ball	3 Wire Leads	119 mm	119 mm	Plastic	930 mA	70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 11938MA-48L-ET-D0			Aluminum				Auto Restart Speed Sensor (Tach)			IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs			Ball	3 Wire Leads	119 mm	119 mm	Plastic		70 °C	70 °C	-10 °C	-10 °C	48 VDC
NMB TECHNOLOGIES 11938MA-24N-EL-D0	171.8 Pa	0.69 in H2O	Aluminum	56.5 dB			Auto Restart Locked Rotor Sensor	4.59 m³/min	162.1 CFM	IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs	17.8 W	24 VDC	Ball	3 Wire Leads	119 mm	119 mm	Plastic	0.74 A	70 °C	70 °C	-10 °C	-10 °C		4200 RPM
NMB TECHNOLOGIES 11938MA-24N-EA-D0	171.8 Pa	0.69 in H2O	Aluminum	56.5 dB			Auto Restart	4.59 m³/min	162.1 CFM	IP69K	38.4 mm	Tubeaxial	100000 Hrs	17.8 W	24 VDC	Ball	2 Wire Leads	119 mm	119 mm	Plastic	0.74 A	70 °C	70 °C	-10 °C	-10 °C		4200 RPM
NMB TECHNOLOGIES 11938MA-24P-EA-D0	214.2 Pa	0.86 in H2O	Aluminum	59.5 dB	15	26.4 VDC	Auto Restart	5.13 m³/min	181.2 CFM	IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs	22.4 W	24 VDC	Ball	2 Wire Leads	119 mm	119 mm	Plastic	930 mA	70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 11938MA-24L-EA-D0	102.1 Pa	0.41 in H2O	Aluminum	49.5 dB			Auto Restart	3.46 m³/min	122.2 CFM	IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs	8.4 W	24 VDC	Ball	2 Wire Leads	119 mm	119 mm	Plastic	0.35 A	70 °C	70 °C	-10 °C	-10 °C		3200 RPM
NMB TECHNOLOGIES 11938MA-48L-EA-D0			Aluminum				Auto Restart			IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs			Ball	2 Wire Leads	119 mm	119 mm	Plastic		70 °C	70 °C	-10 °C	-10 °C	48 VDC
NMB TECHNOLOGIES 11938MA-24K-EL-D0	77.2 Pa	0.31 in H2O	Aluminum	45 dB(A)			Auto Restart Locked Rotor Sensor	2.88 mł/min	102.8 CFM	IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs	6.24 W	24 VDC	Ball	3 Wire Leads	119 mm	119 mm	Plastic	0.26 A	70 °C	70 °C	-10 °C	-10 °C		2700 RPM
NMB TECHNOLOGIES 11938MA-48P-EA-D0			Aluminum				Auto Restart			IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs			Ball	2 Wire Leads	119 mm	119 mm	Plastic		70 °C	70 °C	-10 °C	-10 °C	48 VDC
NMB TECHNOLOGIES 11938MA-12N-EA-D0	171.8 Pa	0.69 in H2O	Aluminum	56.5 dB	8 VDC	13.2 VDC	Auto Restart	4.59 m³/min	162.1 CFM	IP69K - Dust Tight High Temp Water Jets Waterproof	38.4 mm	Tubeaxial	100000 Hrs	17.5 W	12 VDC	Ball	2 Wire Leads	119 mm	119 mm	Plastic	1.46 A	70 °C	70 °C	-10 °C	-10 °C		4200 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.10
		10	$ 42.89
		25	$ 40.97
		50	$ 39.58
		100	$ 38.23
		250	$ 36.52

Description

General part information

11938MA Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 162.1 CFM (4.59m³/min) 2 Wire Leads
