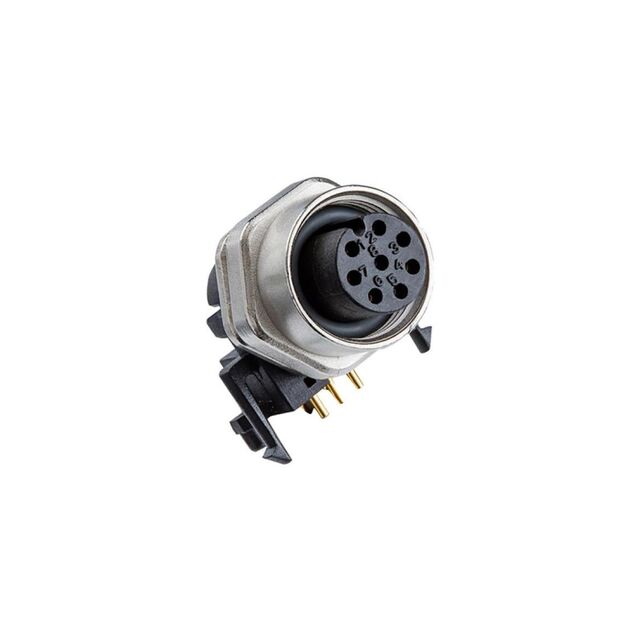

MSBS-05PFFR-SF7003

Active

Amphenol LTW

M12 RA BCODE MATED IP SHIELDED

Search across all available documentation for this part.

Active

Amphenol LTW

M12 RA BCODE MATED IP SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	MSBS-05PFFR-SF7003

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT), Polycarbonate (PC)
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shielding	Contact Finish - Mating	Orientation	Shell Finish	Primary Material	Mounting Feature	Ingress Protection	Mounting Type	Connector Type	Shell Material	Features	Termination	Contact Material	Color	Current Rating (Amps)	Shell Size - Insert
Amphenol LTW MSBS-05PFFR-SF7003	Polybutylene Terephthalate (PBT) Polycarbonate (PC)	-40 °C	105 ░C	60 VDC	Shielded	Gold	B	Nickel	Metal	Bulkhead - Front Side Nut	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Female Sockets Plug	Zinc Alloy	Board Guide Board Lock	Solder	Copper Alloy	Silver	4 A	M12-5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder
