XBUY34D
ActiveSunLED

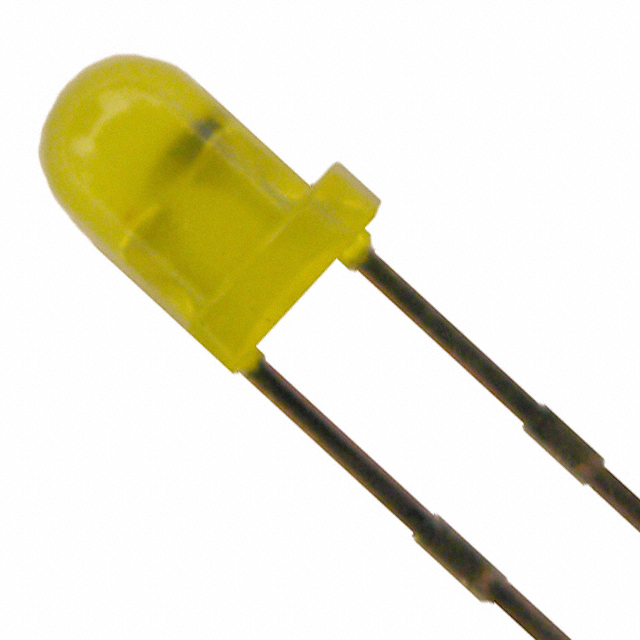

LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XBUY34D
ActiveSunLED
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XBUY34D |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 22 mA |
| Features | Flashing |
| Height (Max) [Max] | 5 mm |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 14 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 (3mm) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 9 V |
| Wavelength - Dominant | 588 nm |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.37 | |
Description
General part information
XBUY34 Series
Yellow 588nm LED Indication - Discrete 9V Radial
