General part information
Solid State SPST-NO (1 Form A) Module
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1069556 |
|---|---|
| Approval Agency | UKCA, CE |
| Load Current | 2 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Spring Terminal |
| Voltage - Input [Max] | 28.8 V |
| Voltage - Input [Min] | 19.2 V |
| Voltage - Load [Max] | 30 V |
| Voltage - Load [Min] | 10 V |

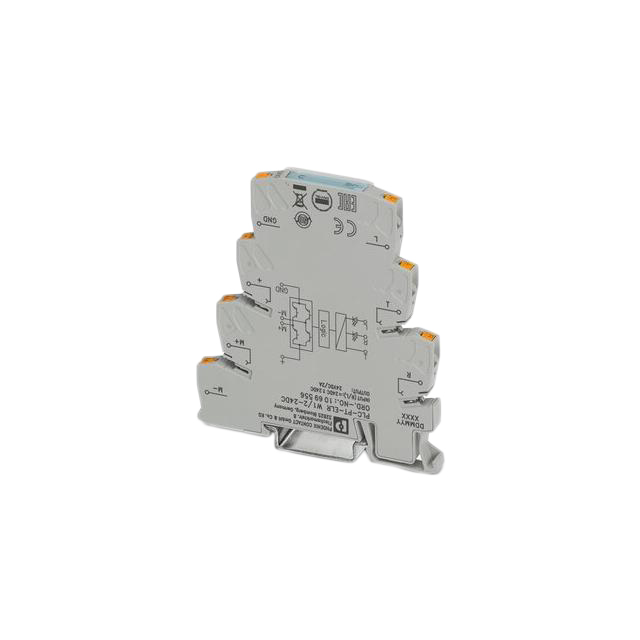

INDUSTRIAL RELAYS PLC-PT-ELR W1/ 2-24DC
| Part | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Load [Max] | Voltage - Load [Min] | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Termination Style | Package / Case | Load Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1069556 | DIN Rail | 19.2 V | 28.8 V | 30 V | 10 V | DC | -25 °C | 60 °C | CE, UKCA | Spring Terminal | Module | 2 A |
