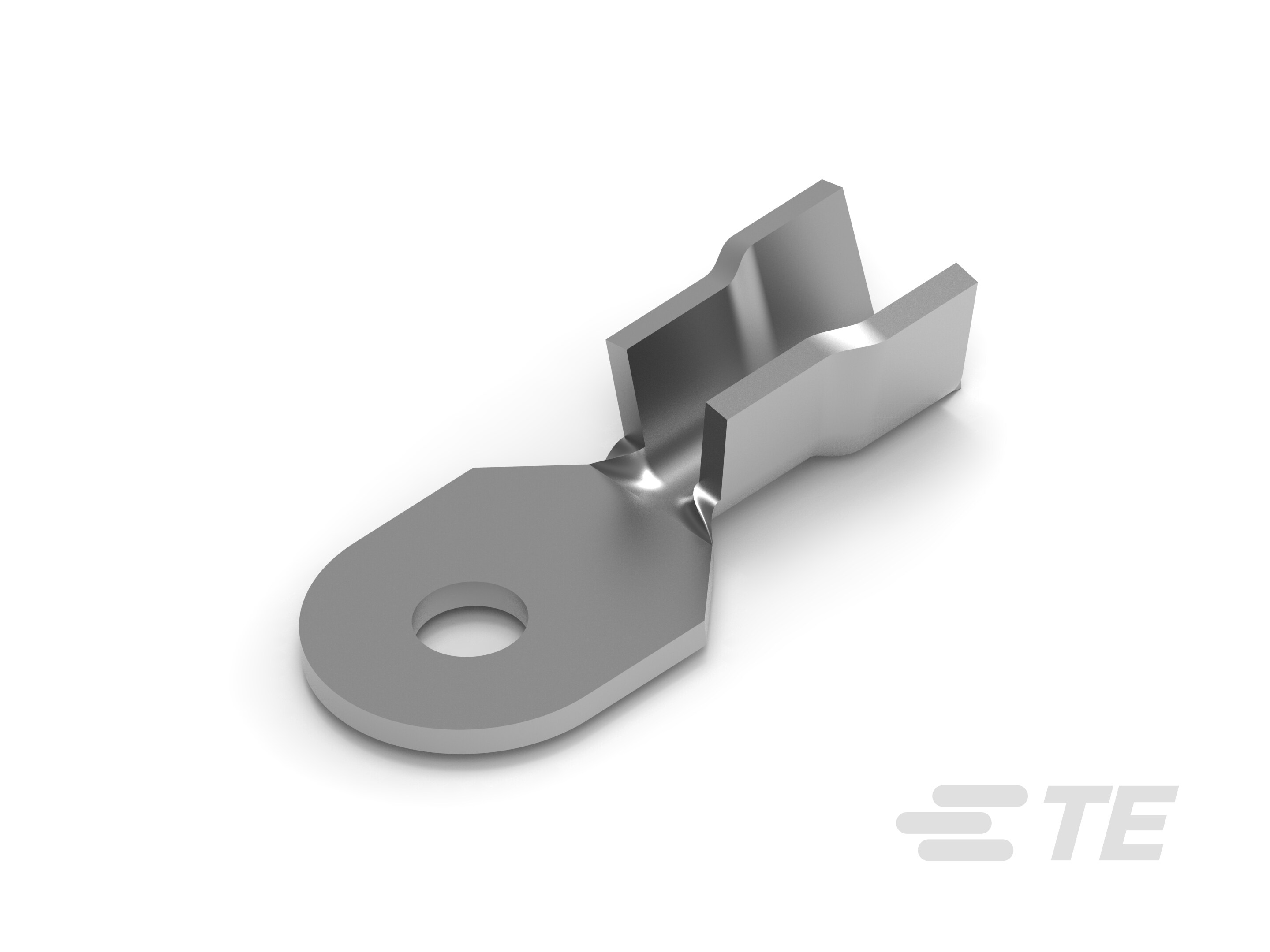

RING TONGUE TERMINAL 12-14AWG BRASS 24.13MM TIN REEL/STRIP
40604-1
ActiveTE Connectivity AMP Connectors
RING TONGUE TERMINAL 12-14AWG BRASS 24.13MM TIN REEL/STRIP
Description
General part information
40604 Series
Closed Ring Tongue Terminal, 14 – 12 AWG, #6 / M3.5 Stud, 3.51 mm [.138 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 40604-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.18 in |
| Insulation Diameter (Min) | 0.13 in |
| Length - Overall | 0.95 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.425 in |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
