MS3124F14-19P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
MS3124F14-19P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3124F14-19P | MS3124F14 Series |
|---|---|---|
| - | - | |
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Strain Relief | Strain Relief |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 19 | 18 - 19 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert | - | 18 |
| Shell Size - Insert [Max] [custom] | 19 | 19 |
| Shell Size - Insert [Min] [custom] | 14 | 14 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 202.78 | |
| 10 | $ 187.91 | |||
| 25 | $ 181.15 | |||
| 50 | $ 179.80 | |||
MS3124F14 Series
RECEPT
| Part | Shielding | Voltage Rating | Color | Shell Finish | Contact Material | Current Rating (Amps) | Grade | Termination | Orientation | Features | Insert Material | Fastening Type | Primary Material | Connector Type | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Shell Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Number of Positions | Qualification | Applications | Mounting Feature | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3124F14-15S | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F14-19P | Unshielded | 600 VAC | Olive Drab | Olive Drab Chromate over Cadmium | Copper Alloy | 7.5 A | Military | Crimp | N | Strain Relief | Neoprene | Bayonet Lock | Metal | Male Pins, Receptacle | 19 | 14 | Aluminum | Environment Resistant | -55 °C | 125 °C | Gold | 19 | MIL-DTL-26482 Series I | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bulkhead - Front Side Nut | ||
Amphenol Industrial Operations MS3124F14-15P | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F14-5S(LC) | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F14-5S | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F14-5P | |||||||||||||||||||||||||||
Amphenol Industrial Operations MS3124F14-18S | Unshielded | 600 VAC | Olive Drab | Olive Drab Chromate over Cadmium | Copper Alloy | 7.5 A | Military | Crimp | N | Strain Relief | Neoprene | Bayonet Lock | Metal | Receptacle, Female Sockets | Aluminum | Environment Resistant | -55 °C | 125 °C | Gold | 18 | MIL-DTL-26482 Series I | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bulkhead - Front Side Nut | 14 | 18 |
Description
General part information
MS3124F14 Series

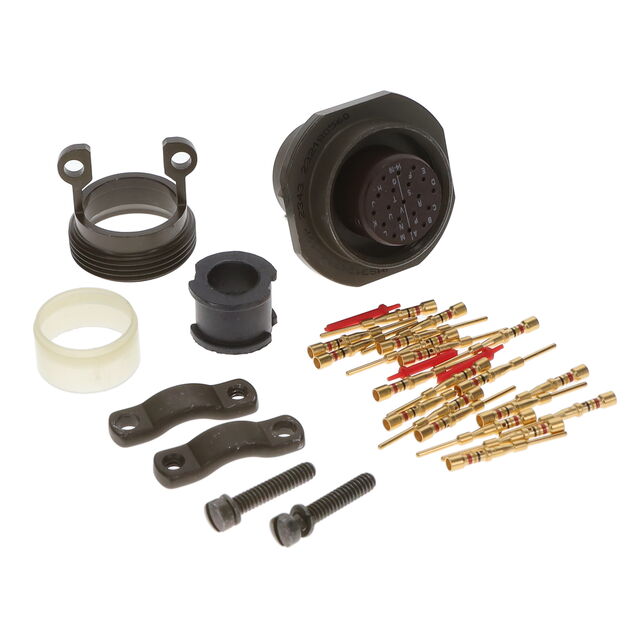

19 Position Circular Connector Receptacle, Male Pins Crimp
Documents
Technical documentation and resources
