SP2000-0.015-00-1212

Active

Bergquist - Henkel

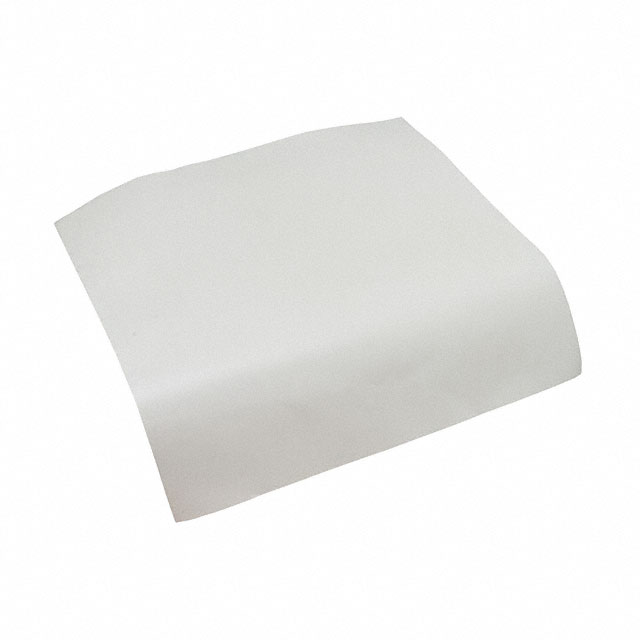

THERM PAD 304.8MMX304.8MM WHT

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 304.8MMX304.8MM WHT

Technical Specifications

Parameters and characteristics for this part

Specification	SP2000-0.015-00-1212

Backing, Carrier	Fiberglass
Color	White
Shape	Square
Shelf Life	12 Months
Storage/Refrigeration Temperature [Max]	90 °F
Thermal Conductivity	3.5 W/m-K
Thickness	0.381 mm
Thickness	0.015 in
Type	Insulator Pad, Sheet

Part	Color	Thickness	Thickness	Thermal Conductivity	Type	Shape	Shelf Life	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Usage	Adhesive	Thickness [custom]	Thickness [custom]	Outline [y]	Outline [x]	Thermal Resistivity
Bergquist - Henkel SP2000-0.015-00-1212	White	0.381 mm	0.015 in	3.5 W/m-K	Insulator Pad Sheet	Square	12 Months	90 °F	Fiberglass
Bergquist - Henkel SP2000-0.010-AC-124	White			3.5 W/m-K		Rectangular	12 Months	90 °F	Fiberglass	TO-220	Adhesive - One Side	0.254 mm	0.01 in	20.07 mm	22.15 mm
Bergquist - Henkel SP2000-0.015-00-104	White	0.381 mm	0.015 in	3.5 W/m-K		Rectangular	12 Months	90 °F	Fiberglass	TO-220				19.05 mm	25.4 mm	0.33 °C/W
Bergquist - Henkel 2191805	White	0.508 mm	0.02 in	3.5 W/m-K	Insulator Pad Sheet	Square	12 Months	90 °F	Fiberglass		Adhesive - One Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad White 304.80mm x 304.80mm Square
