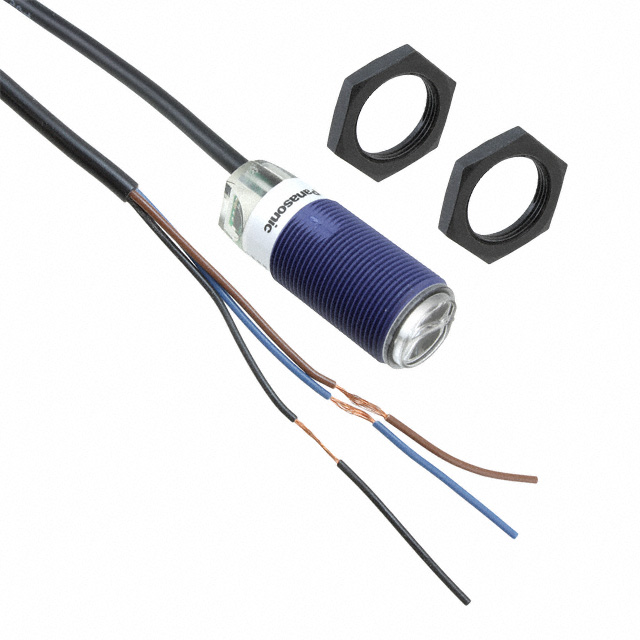

CY-121B

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE 100MM NPN OPEN

Deep-Dive with AI

Search across all available documentation for this part.

CY-121B

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLECTIVE 100MM NPN OPEN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY-121B

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	NPN - Open Collector
Response Time	1 ms
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Reflective, Diffuse
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

CY-121 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Sensing Method	Light Source	Response Time	Output Configuration	Connection Method	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance
Panasonic Industrial Automation Sales CY-121B	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	NPN - Open Collector	Cable	78.74 in	2 m	12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121VA	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	NPN - Open Collector	Cable	78.74 in	2 m	12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121A	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	NPN - Open Collector	Cable	78.74 in	2 m	12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121VB-P-Z	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	PNP - Open Collector	4POS Connector M12			12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121A-P	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	PNP - Open Collector	Cable	78.74 in	2 m	12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121VB	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	NPN - Open Collector	Cable	78.74 in	2 m	12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121B-Z	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	NPN - Open Collector	4POS Connector M12			12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121B-P-Z	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	PNP - Open Collector	4POS Connector M12			12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121VB-P	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	PNP - Open Collector	Cable	78.74 in	2 m	12 V	24 V	3.937 in	100 mm
Panasonic Industrial Automation Sales CY-121A-P-Z	55 °C	-25 °C	IP67	Diffuse Reflective	Infrared	1 ms	PNP - Open Collector	4POS Connector M12			12 V	24 V	3.937 in	100 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CY-121 Series

Reflective, Diffuse Optical Sensor 3.937" (100mm) NPN - Open Collector

Documents

Technical documentation and resources

No documents available
