CDBV120-HF

Active

Comchip Technology

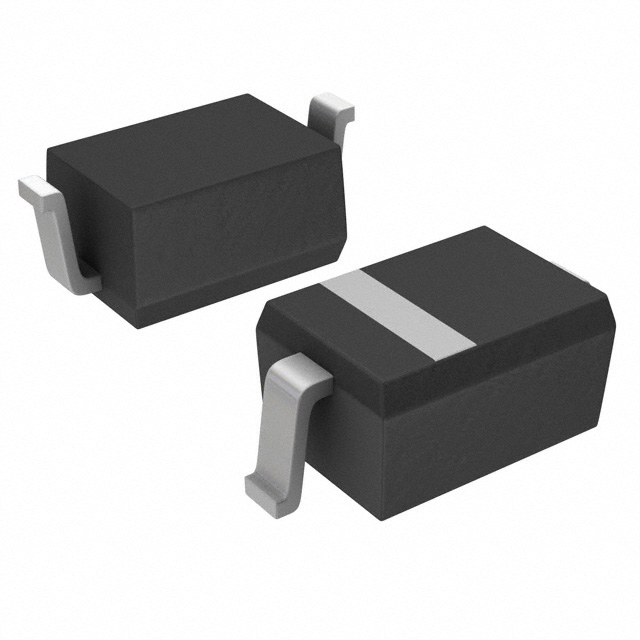

DIODE SCHOTTKY 20V 1A SOD323

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 20V 1A SOD323

Technical Specifications

Parameters and characteristics for this part

Specification	CDBV120-HF

Capacitance @ Vr, F	120 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	SOD-323, SC-76
Speed	200 mA, 500 ns
Supplier Device Package	SOD-323
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If	450 mV

DIODE SCHOTTKY 20V 1A SOD323

Part	Speed	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]
Comchip Technology CDBV120-HF	200 mA, 500 ns	1 mA	Surface Mount	125 °C	-40 °C	SOD-323	Schottky	450 mV	SC-76, SOD-323	1 A	120 pF	20 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 20 V 1A Surface Mount SOD-323
