5002UP 008500

Active

Belden Inc.

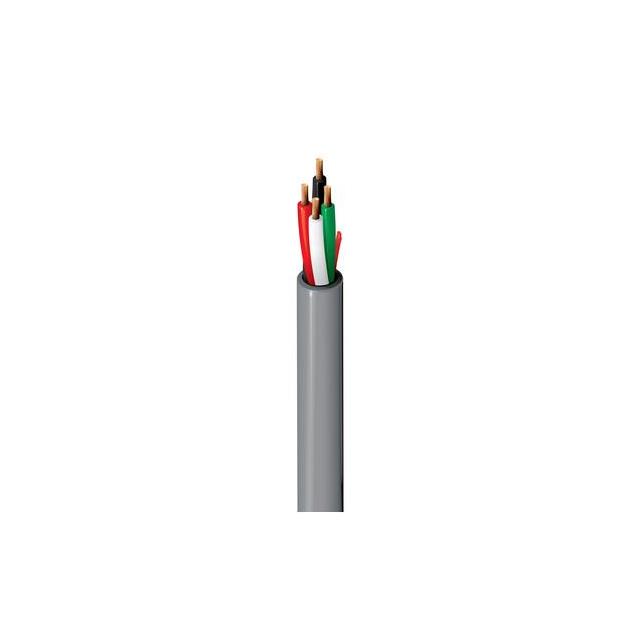

CABLE 4COND 12AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 12AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5002UP 008500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.365 in
Jacket (Insulation) Diameter [diameter]	9.27 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.022 in
Jacket (Insulation) Thickness	0.559 mm
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Ratings	UL Style CL3
Usage	Commercial Audio
Voltage	300 V
Wire Gauge	12 AWG

Part	Conductor Insulation	Conductor Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Features	Ratings	Jacket Color	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Length [x]	Length [x]	Voltage	Length	Length
Belden Inc. 5002UP 008500	Poly-Vinyl Chloride (PVC)	Copper Bare	12 AWG	0.022 in	0.559 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Rip Cord	UL Style CL3	Gray	Commercial Audio	0.365 in	9.27 mm	30 AWG	65	4	500 '	152.4 m	300 V
Belden Inc. 5002UP 0101000	Poly-Vinyl Chloride (PVC)	Copper Bare	12 AWG	0.022 in	0.559 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Rip Cord	UL Style CL3	Black	Commercial Audio	0.365 in	9.27 mm	30 AWG	65	4			300 V	1000 ft	304.8 m
Belden Inc. 5002UP 005500	Poly-Vinyl Chloride (PVC)	Copper Bare	12 AWG	0.022 in	0.559 mm	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Rip Cord	UL Style CL3	Green	Commercial Audio	0.365 in	9.27 mm	30 AWG	65	4	500 '	152.4 m	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Gray 12 AWG 500.0' (152.4m)
