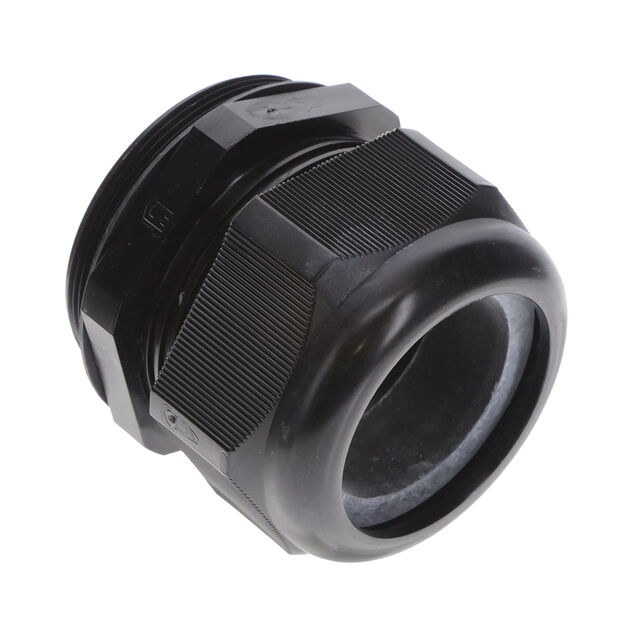

Specification	50.663 PA/SW

Color	Black
Includes	Sealing Ring
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nylon 6
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	1.654 in
Outside Cable Diameter (Min)	1.26 in
Thread Diameter	63 mm
Thread Length	0.472 in
Thread Pitch	1.5 mm
Type	Cable Gland

50.663 Series

Part	Thread Pitch	Thread Diameter	Outside Cable Diameter (Min)	Thread Length	Operating Temperature (Max)	Operating Temperature (Min)	Color	Outside Cable Diameter (Max)	Type	Includes	Material	Ingress Protection IP Rating	Ingress Protection Description
Jacob GmbH 50.663 PA/SWL	1.5 mm	63 mm	1.26 in	0.709 in	100 °C	-40 °C	Black	1.654 in	Cable Gland	Sealing Ring	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 M1	1.5 mm	63 mm	1.496 in	0.394 in	100 °C	-40 °C	Silver	1.89 in	Cable Gland	O-Ring Seal	Brass Nickel Plated	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 PA/RSW	1.5 mm	63 mm	1.063 in	0.472 in	100 °C	-40 °C	Black	1.89 in	Cable Gland	Sealing Ring	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 PA7035	1.5 mm	63 mm	1.26 in	0.472 in	100 °C	-40 °C	Gray	1.654 in	Cable Gland	Sealing Ring	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 M	1.5 mm	63 mm	1.26 in	0.394 in	100 °C	-40 °C	Silver	1.654 in	Cable Gland	O-Ring Seal	Brass Nickel Plated	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 M/EMV	1.5 mm	63 mm	1.26 in	0.394 in	100 °C	-40 °C	Silver	1.654 in	Cable Gland	O-Ring Seal	Brass Nickel Plated	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 PA/SW	1.5 mm	63 mm	1.26 in	0.472 in	100 °C	-40 °C	Black	1.654 in	Cable Gland	Sealing Ring	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 PA7001	1.5 mm	63 mm	1.26 in	0.472 in	100 °C	-40 °C	Gray	1.654 in	Cable Gland	Sealing Ring	Nylon 6 Polyamide (PA6)	IP68	Dust Tight Waterproof
Jacob GmbH 50.663 ES	1.5 mm	63 mm	1.26 in	0.394 in	100 °C	-40 °C	Silver	1.654 in	Cable Gland	O-Ring Seal	Stainless Steel	IP68	Dust Tight Waterproof
Jacob GmbH 50.663M/EMV/L	1.5 mm	63 mm	1.26 in	0.551 in	100 °C	-40 °C	Silver	1.654 in	Cable Gland	O-Ring Seal	Brass Nickel Plated	IP68	Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

50.663 PA/SW | Datasheet
