CD0603-Z3

Obsolete

Bourns Inc.

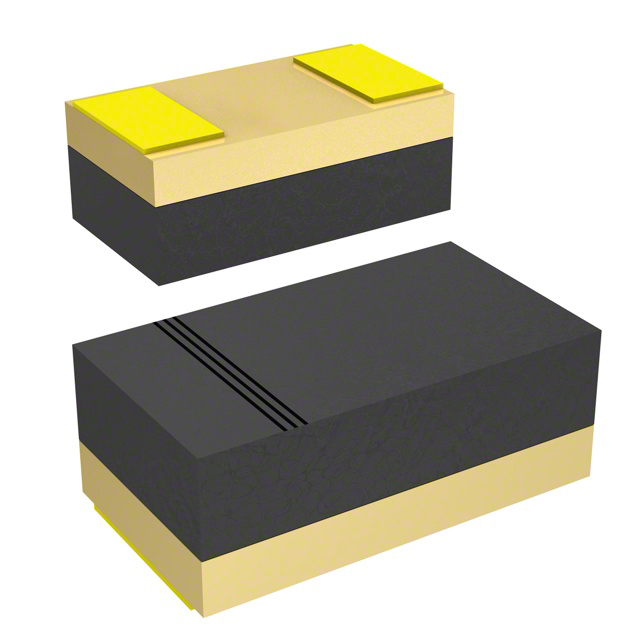

DIODE ZENER 3V 150MW 0603

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CD0603-Z3

Obsolete

Bourns Inc.

DIODE ZENER 3V 150MW 0603

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD0603-Z3

Current - Reverse Leakage @ Vr	50 ÁA
Impedance (Max) (Zzt) [Max]	95 Ohms
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Power - Max [Max]	150 mW
Tolerance	5 %
Voltage - Zener (Nom) (Vz)	3 V

CD0603 Series

Part	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Package / Case	Type	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Tolerance	Current - Reverse Leakage @ Vr	Power - Max [Max]	Impedance (Max) (Zzt) [Max]	Voltage - Zener (Nom) (Vz)	Current - Average Rectified (Io)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Reverse Recovery Time (trr)
Bourns Inc. CD0603-T05C	15 V	1	5.1 A	0603 (1608 Metric)	Zener	5.1 V	5 V	-40 °C	125 ¯C	General Purpose	Surface Mount
Bourns Inc. CD0603-Z5V1				0603 (1608 Metric)				-55 °C	125 °C		Surface Mount	5 %	100 nA	150 mW	60 Ohms	5.1 V
Bourns Inc. CD0603-Z3				0603 (1608 Metric)				-55 °C	125 °C		Surface Mount	5 %	50 ÁA	150 mW	95 Ohms	3 V
Bourns Inc. CD0603-B0240				0603 (1608 Metric)							Surface Mount		10 µA				200 mA	Schottky	40 V	12 pF	125 °C	-40 °C	550 mV	Any Speed	200 mA
Bourns Inc. CD0603-Z3V3				0603 (1608 Metric)				-55 °C	125 °C		Surface Mount	5 %	25 µA	150 mW	95 Ohms	3.3 V
Bourns Inc. CD0603-Z13				0603 (1608 Metric)				-55 °C	125 °C		Surface Mount	5 %	100 nA	150 mW	25 Ohms	13 V
Bourns Inc. CD0603-B0130L				0603 (1608 Metric)							Surface Mount		30 µA				100 mA	Schottky	30 V	9 pF	125 °C	-40 °C	440 mV	Any Speed	200 mA
Bourns Inc. CD0603-S0180R				0603 (1608 Metric)							Surface Mount		50 nA				100 mA	Standard	80 V	4 pF	125 °C	-40 °C	1 V	Any Speed	200 mA	4 ns
Bourns Inc. CD0603-Z16				0603 (1608 Metric)				-55 °C	125 °C		Surface Mount	5 %	100 nA	150 mW	40 Ohms	16 V
Bourns Inc. CD0603-Z7V5				0603 (1608 Metric)				-55 °C	125 °C		Surface Mount	5 %	100 nA	150 mW	7 Ohms	7.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CD0603 Series

Zener Diode 3 V 150 mW ±5% Surface Mount 0603

Documents

Technical documentation and resources
