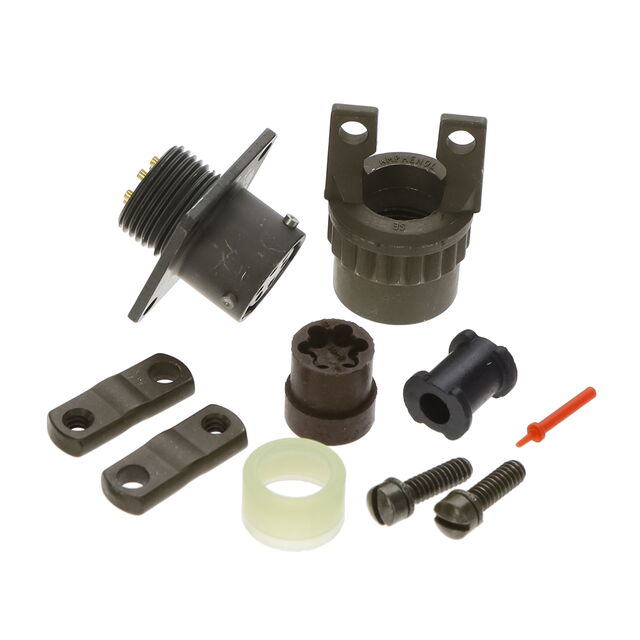

MS3110F10-6S

Active

Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3110F10-6S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	10-6
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Primary Material	Mounting Feature	Fastening Type	Applications	Voltage Rating	Orientation	Ingress Protection	Shell Material	Grade	Shielding	Shell Size - Insert	Contact Finish - Mating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Current Rating (Amps)	Contact Material	Insert Material	Shell Finish	Qualification
Amphenol Aerospace Operations MS3110F10-6S	Metal	Flange	Bayonet Lock	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	600 VAC	N	Environment Resistant	Aluminum Alloy	Military	Unshielded	10-6	Gold	Olive Drab	-55 °C	125 °C	6	Receptacle Female Sockets	7.5 A	Copper Alloy	Neoprene	Olive Drab Chromate over Cadmium	MIL-DTL-26482 Series I

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
