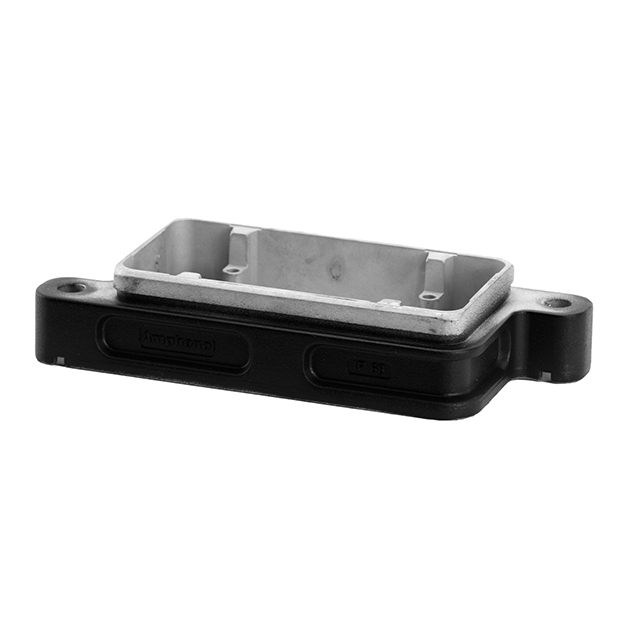

C14668F0100011
ActiveAmphenol Tuchel Industrial
CONN BASE BOTTOM ENTRY SZ10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C14668F0100011
ActiveAmphenol Tuchel Industrial
CONN BASE BOTTOM ENTRY SZ10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C14668F0100011 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Black |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP68, IP69K |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10 Liter |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C14668F010 Series
Base - Panel Mount Connector Bottom Entry 10 IP68/IP69K - Dust Tight, Water Resistant, Waterproof
