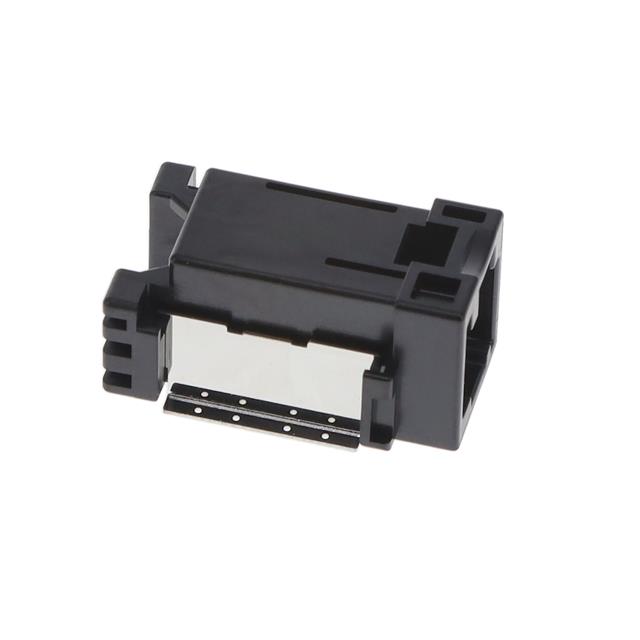

MX74D002HFB
ActiveJAE Electronics
CONN PIN HDR R/A SMT 2 POS KEY B
Deep-Dive with AI
Search across all available documentation for this part.
MX74D002HFB
ActiveJAE Electronics
CONN PIN HDR R/A SMT 2 POS KEY B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MX74D002HFB |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Insulation Color | Gray |
| Insulation Height | 11.35 mm |
| Insulation Height | 0.447 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.94 | |
| 10 | $ 1.48 | |||
| 25 | $ 1.33 | |||
| 40 | $ 1.26 | |||
| 80 | $ 1.17 | |||
| 230 | $ 1.04 | |||
| 440 | $ 0.97 | |||
| 945 | $ 0.89 | |||
| 2400 | $ 0.81 | |||
Description
General part information
MX74D Series
Connector Header Surface Mount, Right Angle 2 position
