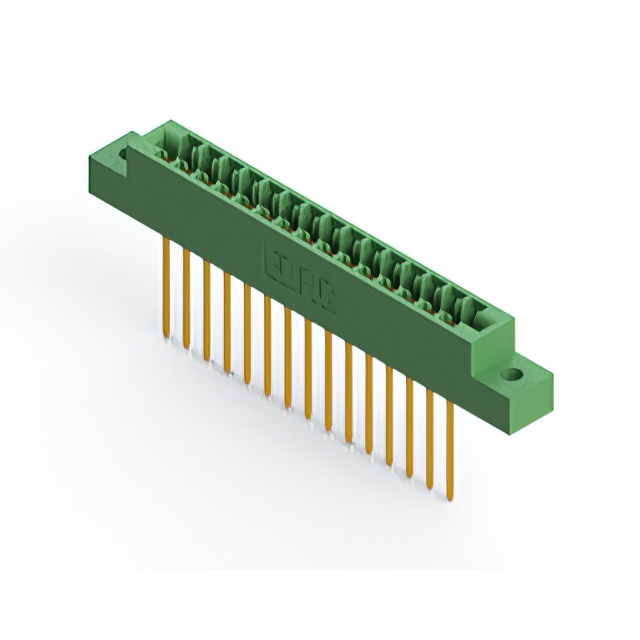

338-015-541-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 15 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
338-015-541-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 15 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 338-015-541-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
338-015 Series
| Part | Card Type | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Read Out | Pitch [x] | Pitch [x] | Flange Feature | Material - Insulation | Number of Positions | Color | Contact Finish | Number of Rows | Gender | Termination Rows | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | Card Guides | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | ||
EDAC Inc. | Non Specified - Single Edge | Card Guides | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | ||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | |||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | ||||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | 3.96 mm | 0.156 in | |
EDAC Inc. | Non Specified - Single Edge | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | |||
EDAC Inc. | Non Specified - Single Edge | Card Guides | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | ||
EDAC Inc. | Non Specified - Single Edge | Through Hole | 125 °C | -65 ░C | Copper Alloy | Single | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | 15 | Green | Gold | 1 | Female | 1 | 15 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Cantilever | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
338-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
