MCETOOLV2
ObsoleteEVALUATION BOARD WITH 3-PHASE MOTOR AND INPUT TYPE AC. ISOLATED DEBUGGER TOOL FOR CONFIGURING, PROGRAMMING AND DEBUGGING OF IMOTION™ MOTOR CONTROL ICS
Deep-Dive with AI
Search across all available documentation for this part.
MCETOOLV2
ObsoleteEVALUATION BOARD WITH 3-PHASE MOTOR AND INPUT TYPE AC. ISOLATED DEBUGGER TOOL FOR CONFIGURING, PROGRAMMING AND DEBUGGING OF IMOTION™ MOTOR CONTROL ICS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MCETOOLV2 |
|---|---|
| Contents | Cable(s), Board(s) |
| For Use With/Related Products | IRMCKxxx, IRMCFxxx |
| Type | Debugger, Programmer (In-Circuit/In-System) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MCETOOLV2 Series

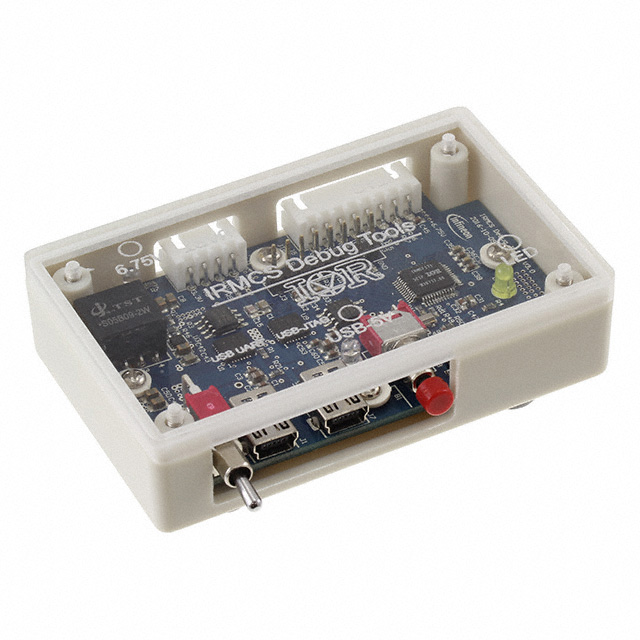

The MCETOOLV2 is an isolated debugger tool designed to program and debugIRMCK099, IRMCx100 and RMCx300 seriesiMOTION™ motor control ICson the user’s target board (final application board) or on their respective evaluation boards. The MCETOOLV2 is also required for motor and inverter board parameter configuration and tuning via UART to USB interface. For this functionality, Infineon additionally provides the necessary PC tools MCEWizzard and MCEDesigner, available undertools & software tab(click on "+" to see all available Software packages). These 2 software tools are delivered as a part of the respective series’ Installer package (e.g. "99 Series Installer" for IRMCK099M devices, or "100 Series Installer" for IRMCK1xx or IRMCF1xx devices). The MCETOOLV2 is required for using any iMOTION™ IRMCKxxx control board of theiMOTION™ Modular Application Design Kit (MADK) platform. Please check the content of the respective kit on its website to learn if MCETOOL V2 is part of the kit, or it needs to be ordered separately. IMPORTANT NOTE:MCETOOLV2 is functionally equivalent to MCETOOLV1 which has been obsoleted.
Documents
Technical documentation and resources
