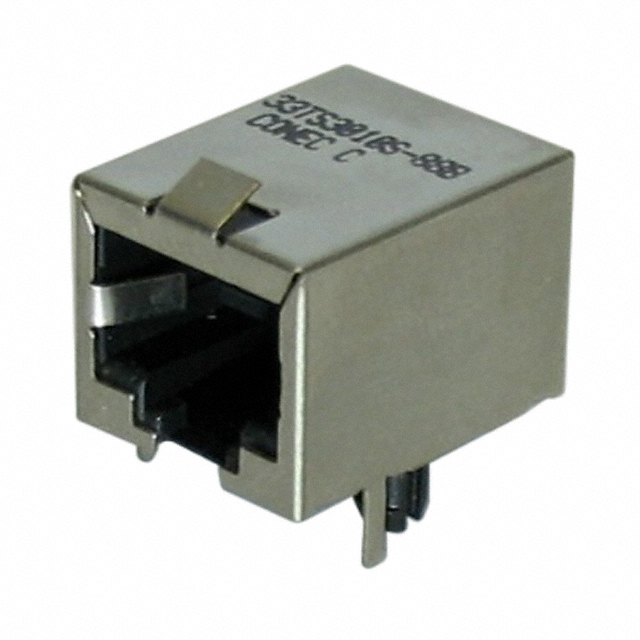

33TS3010S-88B

Active

Amphenol CONEC

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	33TS3010S-88B

Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Number of Positions/Contacts	Orientation	Housing Material	Contact Finish	Mounting Type	Termination	Number of Rows	Tab Direction	LED Color	Shielding	Number of Ports	Connector Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Features
Amphenol CONEC 33TS3010-66B	6p6c (RJ11 RJ12 RJ14 RJ25)	90 °
Amphenol CONEC 33TS3010-64B	6p4c	90 °
Amphenol CONEC 33TS3010S-88B	8p8c (RJ45 Ethernet)	90 °	Thermoplastic	Gold	Through Hole	Solder	1	Down	Does Not Contain LED	Shielded	1	Jack	Phosphor Bronze
Amphenol CONEC 33TS3012-0188B	8p8c (RJ45 Ethernet)	90 °
Amphenol CONEC 33TS3010SF-88BRR	8p8c (RJ45 Ethernet)	90 °								Shielded
Amphenol CONEC 33TS3010NF-88B	8p8c (RJ45 Ethernet)	90 °		Gold	Through Hole	Solder	1	Down	Does Not Contain LED	Unshielded	1	Jack	Phosphor Bronze	0.152 Ám	6 Áin	Board Lock Ferrite
Amphenol CONEC 33TS3010S-88ER	8p8c (RJ45 Ethernet)	90 °								Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	230	$ 1.71

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
