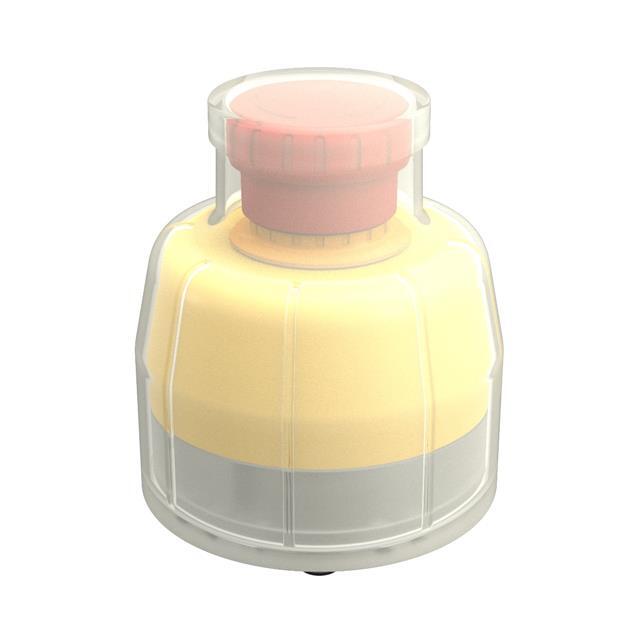

Specification	SSA-EB1PL-12ECQ8-WC

Circuit	3PST-2NC/1NO
Current Rating	2 A
Features	Washdown Cover, Illuminated (Red), Control Box Enclosure
Illumination Voltage (Nominal)	24 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	30 mm
Panel Cutout Shape	Circular
Reset Operation	Twist, Pull
Switch Function	On-Off, Off-On
Termination Style	Connector
Voltage Rating - DC	24 V

SSA-EB1 Series

Part	Panel Cutout Diameter	Panel Cutout Shape	Reset Operation	Voltage Rating - DC	Circuit	Mounting Type	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Min)	Operating Temperature (Max)	Switch Function	Features	Termination Style	Current Rating	Illumination Voltage (Nominal)
BANNER ENGINEERING SSA-EB1P-02ECQ5B	30 mm	Circular	Pull Twist	30 V	DPST-NC	Front Panel Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	On-Off	Control Box Enclosure	Connector	2 A
BANNER ENGINEERING SSA-EB1PLXR-02ED1Q5A			Pull Twist	24 V	DPST-NC	Chassis Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	On-Off	Control Box Enclosure Illuminated (Red)	Connector	2 A	24 V
BANNER ENGINEERING SSA-EB1PL2-12ED1Q8			Pull Twist	24 V	3PST-2NC/1NO	Chassis Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	Off-On On-Off	Control Box Enclosure Illuminated (Red)	Connector	2 A	24 V
BANNER ENGINEERING SSA-EB1MP-02ED1Q4			Twist	24 V	DPST-NC	Chassis Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	On-Off	Control Box Enclosure Padlock Style	Connector	2 A
BANNER ENGINEERING SSA-EB1P-22	30 mm	Circular	Pull Twist	24 V	4PST-2NO/2NC	Front Panel Mount	IP65	Dust Tight Water Resistant	-25 °C	60 °C	Off-On On-Off		Screw Terminal	2 A
BANNER ENGINEERING SSA-EB1MP-22ED1Q8			Twist	24 V	4PST-2NO/2NC	Chassis Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	Off-On On-Off	Control Box Enclosure Padlock Style	Connector	2 A
BANNER ENGINEERING SSA-EB1P-02ECQ4	30 mm	Circular	Pull Twist	24 V	DPST-NC	Front Panel Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	On-Off	Control Box Enclosure	Connector	2 A
BANNER ENGINEERING SSA-EB1MP-02	30 mm	Circular	Key Lock	30 V	DPST-NC	Front Panel Mount	IP65	Dust Tight Water Resistant	-25 °C	60 °C	On-Off		Screw Terminal	2 A
BANNER ENGINEERING SSA-EB1ML1P-13	30 mm	Circular	Key Lock	24 V	4PST-3NC/1NO	Front Panel Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	Off-On On-Off	Illuminated (Red)	Screw Terminal	2 A	24 V
BANNER ENGINEERING SSA-EB1P-22ECQ8	30 mm	Circular	Pull Twist	24 V	4PST-2NO/2NC	Front Panel Mount	IP65	Dust Tight Water Resistant	-25 °C	55 °C	Off-On On-Off	Control Box Enclosure	Connector	2 A
