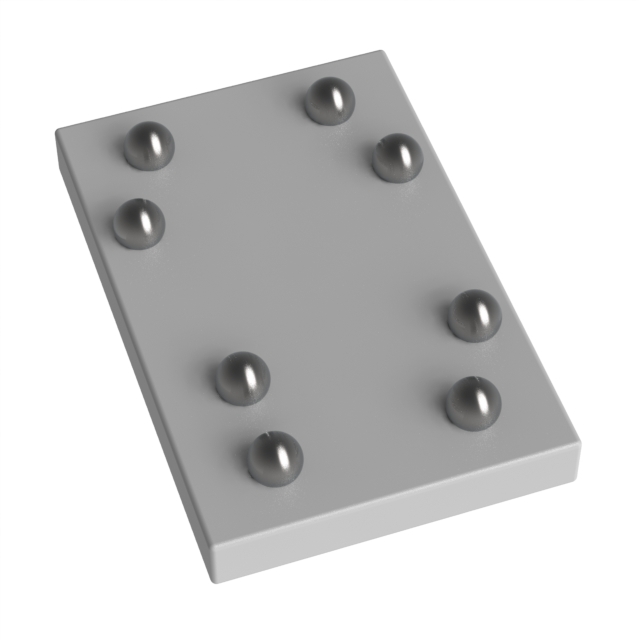

M95M04-DRCS6TPVF

Active

STMicroelectronics

IC EEPROM 4MBIT SPI 10MHZ 8WLCSP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M95M04-DRCS6TPVF

Active

STMicroelectronics

IC EEPROM 4MBIT SPI 10MHZ 8WLCSP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M95M04-DRCS6TPVF

Clock Frequency	10 MHz
Memory Format	EEPROM
Memory Interface	SPI
Memory Organization	512 K
Memory Size	512 kb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	WLCSP, 8-UFBGA
Supplier Device Package	8-WLCSP
Supplier Device Package [x]	2.81
Supplier Device Package [y]	1.86
Technology	EEPROM
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	1.8 V
Write Cycle Time - Word, Page	5 ms

M95M04-A145 Series

Automotive 4096 Kbit SPI bus EEPROM with high speed clock

Part	Technology	Write Cycle Time - Word, Page	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Memory Format	Clock Frequency	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case	Memory Interface	Mounting Type	Package / Case [custom]	Package / Case [custom]	Grade	Qualification	Access Time
STMicroelectronics M95M04-DRCS6TPVF	EEPROM	5 ms	85 °C	-40 °C	512 K	EEPROM	10 MHz	512 kb	1.8 V	5.5 V	Non-Volatile	8-WLCSP	1.86	2.81	8-UFBGA WLCSP	SPI	Surface Mount
STMicroelectronics M95M04-DWDW3TP/V	EEPROM	4 ms	125 °C	-40 °C	512 K	EEPROM	10 MHz	512 kb	2.9 V	5.5 V	Non-Volatile	8-TSSOP			8-TSSOP	SPI	Surface Mount	0.173 "	4.4 mm	Automotive	AEC-Q100	40 ns
STMicroelectronics M95M04-DWDW4TP/V	EEPROM	4 ms	145 °C	-40 °C	512 K	EEPROM	10 MHz	512 kb	2.9 V	5.5 V	Non-Volatile	8-TSSOP			8-TSSOP	SPI	Surface Mount	0.173 "	4.4 mm	Automotive	AEC-Q100	40 ns
STMicroelectronics M95M04-DRDW6TP	EEPROM	5 ms	85 °C	-40 °C	512 K	EEPROM	10 MHz	512 kb	1.8 V	5.5 V	Non-Volatile	8-TSSOP			8-TSSOP	SPI	Surface Mount	0.173 "	4.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.21
		10	$ 3.81
		25	$ 3.73
		50	$ 3.71
		100	$ 3.33
		250	$ 3.32
		500	$ 3.20
		1000	$ 3.04
	Digi-Reel®	1	$ 4.21
		10	$ 3.81
		25	$ 3.73
		50	$ 3.71
		100	$ 3.33
		250	$ 3.32
		500	$ 3.20
		1000	$ 3.04
	Tape & Reel (TR)	10000	$ 2.61

Description

General part information

M95M04-A145 Series

The M95M04-A125 and M95M04-A145 are 4-Mbit serial EEPROM automotive grade devices operating up to 145 °C. They are compliant with the very high level of reliability defined by the automotive standard AEC-Q100 grade 0.

The devices are accessed by a simple serial SPI compatible interface running at up to 10 MHz.

The memory array is based on advanced true EEPROM technology (electrically erasable programmable memory). The M95M04-A125 and M95M04-A145 are byte-alterable memories (524288 × 8 bits) organized as 1024 pages of 512 bytes in which the data integrity is significantly improved with an embedded error correction code logic.
