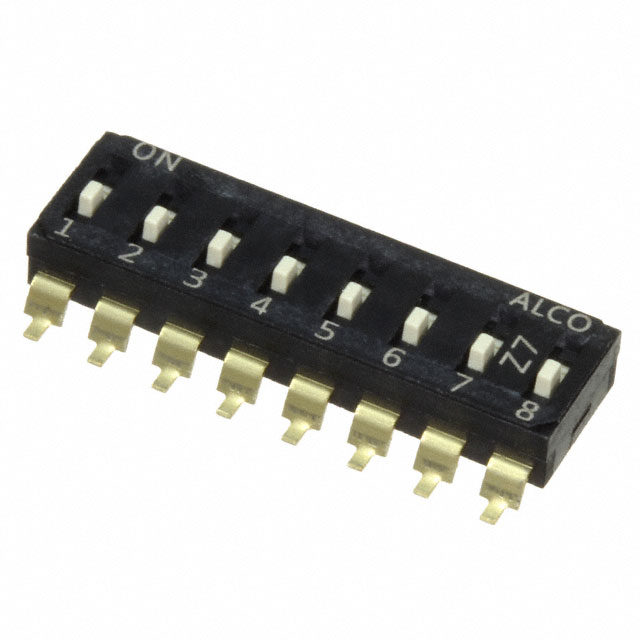

EDS08SGNNTU04Q

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EDS08SGNNTU04Q

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDS08SGNNTU04Q

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Nylon, Polyamide (PA)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	3.8 mm
Height Above Board	0.15 "
Length	0.796 "
Length	20.22 mm
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

ALCOSWITCH DIP EDS Series

Part	Mounting Type	Termination Style	Actuator Type	Number of Positions	Circuit	Length	Length	Body Material	Contact Material	Actuator Level	Electrical Life	Height Above Board [z]	Height Above Board [z]	Mechanical Life	Contact Finish	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board
TE Connectivity Raychem Cable Protection EDS10SGRNTR04Q	Surface Mount	Gull Wing	Slide (Standard)	10	SPST	25.3 mm	0.996 in	Nylon Polyamide (PA)	Copper Alloy	Flush Recessed	2000 Steps	3.4 mm	0.134 in	2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C
TE Connectivity Raychem Cable Protection EDS08SNRSTR04Q	Surface Mount	J Lead	Slide (Standard)	8	SPST	20.22 mm	0.796 "	Nylon Polyamide (PA)	Copper Alloy	Flush Recessed	2000 Steps	3.45 mm	0.136 in	2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C
TE Connectivity Raychem Cable Protection EDS08SNRNTU04Q	Surface Mount	J Lead	Slide (Standard)	8	SPST	20.22 mm	0.796 "	Nylon Polyamide (PA)	Copper Alloy	Flush Recessed	2000 Steps	3.45 mm	0.136 in	2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C
TE Connectivity Raychem Cable Protection EDS10SGRNTU04Q	Surface Mount	Gull Wing	Slide (Standard)	10	SPST	25.3 mm	0.996 in	Nylon Polyamide (PA)	Copper Alloy	Flush Recessed	2000 Steps	3.4 mm	0.134 in	2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C
TE Connectivity Raychem Cable Protection EDS10SNNNTR04Q	Surface Mount	J Lead	Slide (Standard)	10	SPST	25.3 mm	0.996 in	Nylon Polyamide (PA)	Copper Alloy	Raised	2000 Steps			2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C	0.152 in	3.85 mm
TE Connectivity Raychem Cable Protection EDS08SGNNTU04Q	Surface Mount	Gull Wing	Slide (Standard)	8	SPST	20.22 mm	0.796 "	Nylon Polyamide (PA)	Copper Alloy	Raised	2000 Steps			2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C	0.15 "	3.8 mm
TE Connectivity Raychem Cable Protection EDS08SNRSTU04Q	Surface Mount	J Lead	Slide (Standard)	8	SPST	20.22 mm	0.796 "	Nylon Polyamide (PA)	Copper Alloy	Flush Recessed	2000 Steps	3.45 mm	0.136 in	2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C
TE Connectivity Raychem Cable Protection EDS10SGNNTR04Q	Surface Mount	Gull Wing	Slide (Standard)	10	SPST	25.3 mm	0.996 in	Nylon Polyamide (PA)	Copper Alloy	Raised	2000 Steps			2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C	0.15 "	3.8 mm
TE Connectivity Raychem Cable Protection EDS10SNRSTU04Q	Surface Mount	J Lead	Slide (Standard)	10	SPST	25.3 mm	0.996 in	Nylon Polyamide (PA)	Copper Alloy	Flush Recessed	2000 Steps	3.45 mm	0.136 in	2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C
TE Connectivity Raychem Cable Protection EDS10SGRSTU04Q	Surface Mount	Gull Wing	Slide (Standard)	10	SPST	25.3 mm	0.996 in	Nylon Polyamide (PA)	Copper Alloy	Flush Recessed	2000 Steps	3.4 mm	0.134 in	2000 Cycles	Gold	0.1 in	Full	2.54 mm	24 VDC	25 mA	85 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.90
		23	$ 1.85
		46	$ 1.68
		115	$ 1.46
		253	$ 1.32
		506	$ 1.23
		1012	$ 1.14
		2507	$ 1.03
		5014	$ 0.96

Description

General part information

ALCOSWITCH DIP EDS Series

Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
