JPM26B-H

Active

NKK Switches

INTERNATIONALLY APPROVED PUSHBUTTON

Search across all available documentation for this part.

Active

NKK Switches

INTERNATIONALLY APPROVED PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Specification	JPM26B-H

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPST
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Tactile Feedback
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	28 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Type	Mechanical Life	Current Rating (Amps)	Actuator Marking	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Electrical Life	Voltage Rating - AC	Features	Switch Function	Actuator Type	Termination Style
NKK Switches JPM26B-H	-10 °C	158 °F	Standard	25000 Steps	10 A	No Marking	Panel Mount Snap-In	21.2 mm	28 mm	DPST	25000 Steps	125 V	Tactile Feedback	Off-On	Rectangular Button	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

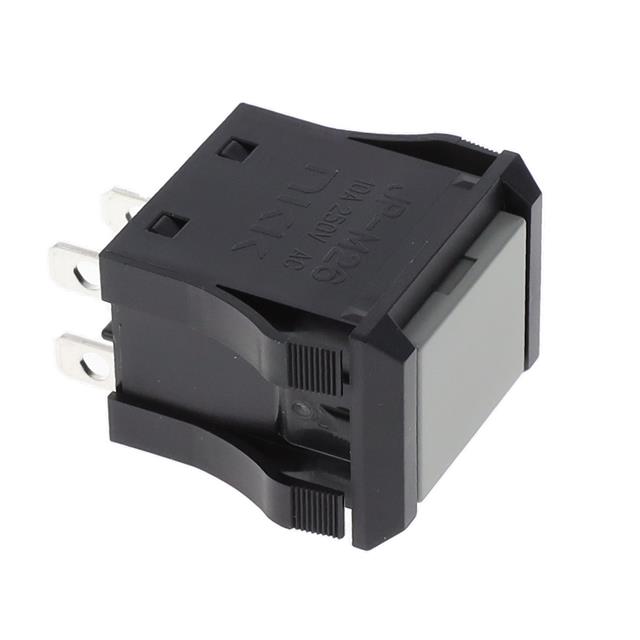

Pushbutton Switch DPST Standard Panel Mount, Snap-In
