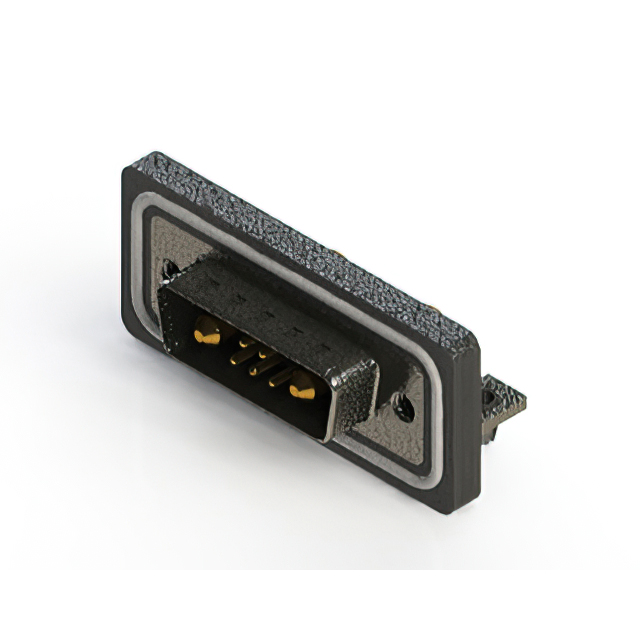

629W7W2-640-4NB

Active

EDAC Inc.

CONN D-SUB PLUG 7POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W7W2-640-4NB

Active

EDAC Inc.

CONN D-SUB PLUG 7POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W7W2-640-4NB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Brackets, Board Lock, Grounding Indents, Shielded, Filter
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	125 VDC

629W7W Series

Part	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Shell Material, Finish	Contact Material	Ingress Protection	Connector Style	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Voltage Rating	Shell Size, Connector Layout	Features	Color	Mounting Type	Flange Feature	Contact Type	Termination	Current Rating (Amps)	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 629W7W2-640-3N3	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.76 Ám	30 Áin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Signal and Power	Solder	5 A 30 A
EDAC Inc. 629W7W2-340-4N2	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.38 µm	15 µin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Grounding Indents Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Signal and Power	Solder	5 A 40 A
EDAC Inc. 629W7W2-340-3NB	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.38 µm	15 µin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Signal and Power	Solder	5 A 30 A
EDAC Inc. 629W7W2-640-4N2	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.76 Ám	30 Áin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Grounding Indents Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Signal and Power	Solder	5 A 40 A
EDAC Inc. 629W7W2-340-4NA	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.38 µm	15 µin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Grounding Indents Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Signal and Power	Solder	5 A 40 A
EDAC Inc. 629W7W2-240-3N3	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold			UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Board Lock Grounding Indents Mounting Brackets Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Signal and Power	Solder	5 A 30 A	Flash
EDAC Inc. 629W7W2-640-4NB	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.76 Ám	30 Áin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Signal and Power	Solder	5 A 40 A
EDAC Inc. 629W7W2-340-4NC	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.38 µm	15 µin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Grounding Indents Mounting Brackets Shielded	Black	Through Hole Right Angle	Housing/Shell (M3)	Signal and Power	Solder	5 A 40 A
EDAC Inc. 629W7W2-640-1NB	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.76 Ám	30 Áin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Signal and Power	Solder			10A 5A
EDAC Inc. 629W7W2-340-4N4	7	2	Male Pins Plug	Nickel Plated Steel	Copper Alloy	IP67 - Dust Tight Waterproof	Combo D-Sub	Gold	0.38 µm	15 µin	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	2	125 VDC	2 (DA A) - 7W2	Grounding Indents Mounting Brackets Shielded	Black	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Signal and Power	Solder	5 A 40 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 20.43

Description

General part information

629W7W Series

7 (5 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
