A9CAG-1508F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFG15G/AF15/AFE15T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A9CAG-1508F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFG15G/AF15/AFE15T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9CAG-1508F | A9CAG Series |
|---|---|---|
| Length | 203.2 mm | 76.2 - 203.2 mm |
| Length | 8 in | 6 - 8 in |
| Length | - | 3 - 5 in |
| Length | - | 101.6 - 127 mm |
| Number of Positions | 15 | 2 - 20 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.17 | |
| 10 | $ 8.42 | |||
| 25 | $ 7.82 | |||
| 50 | $ 7.39 | |||
| 100 | $ 6.98 | |||
| 250 | $ 6.48 | |||
| 500 | $ 6.13 | |||
| 1000 | $ 5.80 | |||
A9CAG Series
FLEX CABLE - AFG12G/AF12/AFE12T
...
| Part | Pitch [x] | Pitch [x] | Number of Positions | Length [x] | Length | Length [x] | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9CAG-1203F | 2.54 mm | 0.1 in | 12 | 3 in | 76.2 mm | |||
TE Connectivity AMP Connectors A9CAG-0205F | 2.54 mm | 0.1 in | 2 | 5 in | 127 mm | |||
TE Connectivity AMP Connectors A9CAG-1606F | 2.54 mm | 0.1 in | 152.4 mm | 6 in | 16 | |||
TE Connectivity AMP Connectors A9CAG-1202F | 2.54 mm | 0.1 in | 12 | |||||
TE Connectivity AMP Connectors A9CAG-1605F | 2.54 mm | 0.1 in | 5 in | 127 mm | 16 | |||
TE Connectivity AMP Connectors A9CAG-1304F | 2.54 mm | 0.1 in | 13 | 4 " | 101.6 mm | |||
TE Connectivity AMP Connectors A9CAG-0802F | 2.54 mm | 0.1 in | 8 | |||||
TE Connectivity AMP Connectors A9CAG-1508F | 2.54 mm | 0.1 in | 15 | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9CAG-0904F | 2.54 mm | 0.1 in | 9 | 4 " | 101.6 mm | |||
TE Connectivity AMP Connectors A9CAG-0405F | 2.54 mm | 0.1 in | 4 | 5 in | 127 mm |
Description
General part information
A9CAG Series

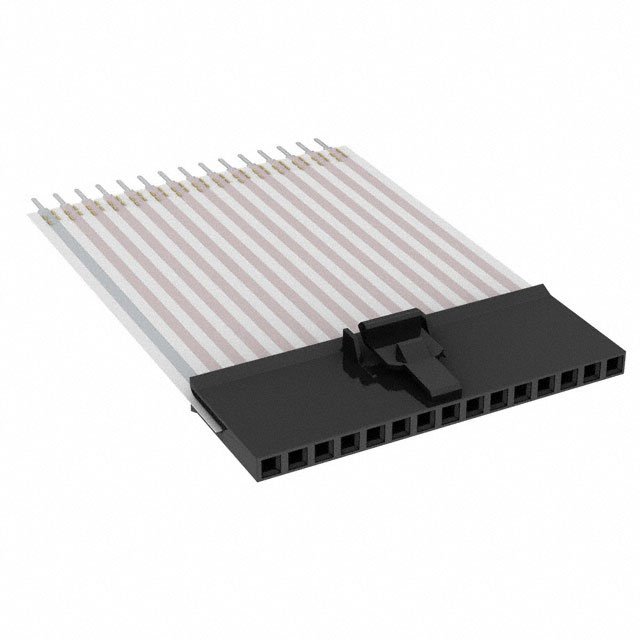

15 Position Flat Flex Cable Assembly Receptacle with Latch to Solder Tab 8.00" (203.20mm)
