171-009-103L021

Active

MH Connectors

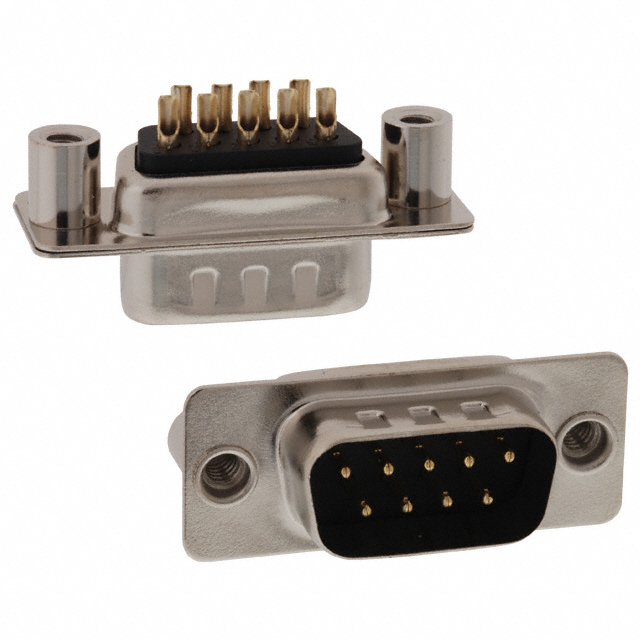

D SUB CONNECTOR, STANDARD, PLUG, 171 SERIES, 9 CONTACTS, DE, SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide +1

171-009-103L021

Active

MH Connectors

D SUB CONNECTOR, STANDARD, PLUG, 171 SERIES, 9 CONTACTS, DE, SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	171-009-103L021

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	20 AWG

171-009 Series

Part	Contact Finish Thickness	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Connector Style	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Form	Material Flammability Rating	Contact Finish	Number of Positions	Color	Current Rating (Amps)	Number of Rows	Connector Type	Dielectric Material	Termination	Mounting Type	Shell Material, Finish	Contact Material	Features
MH Connectors 171-009-202L001	Flash	Signal	20 AWG	28 AWG	D-Sub	Housing/Shell (Unthreaded)	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)
MH Connectors 171-009-212-031	Flash	Signal			D-Sub	4-40	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	Solder	Panel Mount Through Hole
MH Connectors 171-009-202-001	Flash	Signal	20 AWG	28 AWG	D-Sub	Housing/Shell (Unthreaded)	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)
MH Connectors 171-009-203L011	Flash	Signal	20 AWG	28 AWG	D-Sub	Cable Side	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled			Nickel Plated Steel
MH Connectors 171-009-213R911	Flash	Signal			D-Sub	Board Side (4-40) Mating Side Female Screwlock (4-40)	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Solder	Panel Mount Through Hole	Nickel Plated Steel	Brass
MH Connectors 171-009-112-031	Flash	Signal			D-Sub	4-40	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Male Pins Plug	Polybutylene Terephthalate (PBT)	Solder	Panel Mount Through Hole			Grounding Indents
MH Connectors 171-009-102-021	Flash	Signal	20 AWG	28 AWG	D-Sub	Cable Side	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Male Pins Plug	Polybutylene Terephthalate (PBT)					Grounding Indents
MH Connectors 171-009-112-011	Flash	Signal			D-Sub	4-40 Board Side	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Male Pins Plug	Polybutylene Terephthalate (PBT)	Solder	Panel Mount Through Hole			Grounding Indents
MH Connectors 171-009-213R021	Flash	Signal			D-Sub	4-40 Board Side	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	Solder	Panel Mount Through Hole	Nickel Plated Steel	Brass
MH Connectors 171-009-103L021	Flash	Signal	20 AWG	28 AWG	D-Sub	Cable Side	DE E	1	Stamped	UL94 V-0	Gold	9	Black	5 A	2	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled			Nickel Plated Steel	Copper Alloy	Grounding Indents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.83
		10	$ 2.16
		25	$ 1.94
		40	$ 1.84
		80	$ 1.71
		230	$ 1.52
		440	$ 1.42
		945	$ 1.31
		2400	$ 1.20
Newark	Each	1	$ 2.01
		10	$ 1.63
		25	$ 1.51
		50	$ 1.45
		100	$ 1.36
		250	$ 1.24
		500	$ 1.15
		1000	$ 1.09

Description

General part information

171-009 Series

9 Position D-Sub Plug, Male Pins Connector
