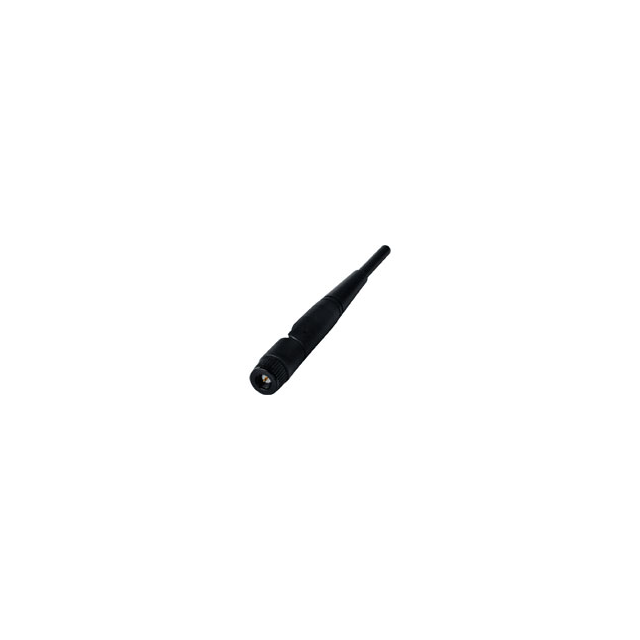

ANT-421-02

Obsolete

ICP DAS USA INC

GPRS/GSM ANTENNA

Search across all available documentation for this part.

Obsolete

ICP DAS USA INC

GPRS/GSM ANTENNA

Technical Specifications

Parameters and characteristics commom to parts in this series

4G EXTERNAL GPRS/GSM ANTENNA

Part	Mounting Type	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	RF Family/Standard	Number of Bands	Frequency Group	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Applications	Gain
ICP DAS USA INC ANT-421-05	Connector Mount	1.8 GHz, 1.9 GHz, 2.1 GHz, 2.6 GHz, 800 MHz, 850 MHz, 900 MHz	2.11 GHz, 2.69 GHz, 960 MHz	1.71 GHz, 698 MHz, 2310 MHz	Tilt, Whip	Cellular	7	Wide Band
ICP DAS USA INC ANT-421-02	Connector Mount	1.94 GHz, 892 MHz	2.17 GHz, 960 MHz	1.71 GHz, 824 MHz	Tilt, Whip	Cellular	2		5.354 in	136 mm	GPRS, GSM	-1 dBi, 1.7 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.99

General part information

RF ANTENNA GSM, GPRS Whip, Tilt SMA Male Connector Mount
