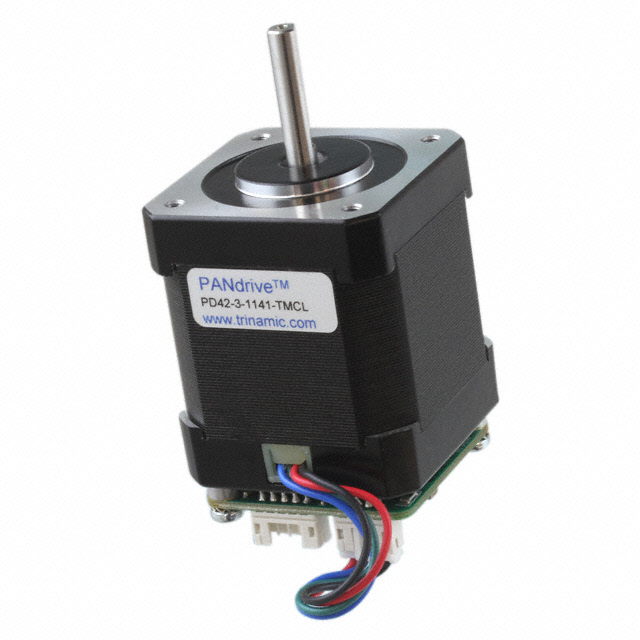

PD42-3-1141
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Search across all available documentation for this part.
PD42-3-1141
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD42-3-1141 | PD42-3 Series |
|---|---|---|
| Coil Resistance | - | 1.4 - 500 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 2 A | 1 - 3 A |
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Features | Flatted Shaft, Integrated Controller | Flatted Shaft, Integrated Controller, Round Shaft |
| Function | - | Servomotor |
| Length - Shaft and Bearing | - | 0.866 in |
| Length - Shaft and Bearing | - | 22 mm |
| Length - Shaft and Bearing [x] | 24 mm | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in | 0.945 in |
| Motor Type | - | Brushless (BLDC) |
| Mounting Hole Spacing | - | 0.988 - 1.22 in |
| Mounting Hole Spacing | - | 25.1 - 31 mm |
| NEMA Frame Size | 17 | 17 |
| Operating Temperature | - | 40 - 50 °C |
| Operating Temperature | - | -20 C |
| RPM | - | 4000 RPM |
| Size / Dimension [x] | 42 mm | 42 mm |
| Size / Dimension [x] | 1.654 in | 1.654 in |
| Size / Dimension [y] | 1.654 " | 1.654 " |
| Size / Dimension [y] | 42 mm | 42 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Termination Style | - | Connector |
| Torque - Holding (oz-in / mNm) | 69.39 oz-in | 56.66 - 69.39 oz-in |
| Torque - Holding (oz-in / mNm) | 490 mNm | 400 - 490 mNm |
| Torque - Rated (oz-in / mNm) | - | 180 mNm |
| Torque - Rated (oz-in / mNm) | - | 25.49 oz-in |
| Type | Hybrid | Hybrid, DC Motor |
| Voltage - Rated | 24 VDC | 2.4 - 24 V |
| Weight | 220.45 g, 0.486 lb | 0.486 - 220.45 g |
| Weight | - | 395.08 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 220.84 | |
| 5 | $ 202.96 | |||
| 10 | $ 195.71 | |||
| 25 | $ 192.06 | |||
PD42-3 Series
PANDRIVE NEMA17, 24V, 0.44NM
| Part | Features | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Coil Type | Mounting Hole Spacing | Mounting Hole Spacing | NEMA Frame Size | Coil Resistance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Steps per Revolution | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type | Step Angle | Motor Type | Length - Shaft and Bearing | Length - Shaft and Bearing | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | RPM | Function | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD42-3-1370-TMCL | Flatted Shaft, Integrated Controller | 440 mNm | 62.31 oz-in | 2.4 V | 50 °C | -20 C | Connector | 2 A | Bipolar | 1.22 in | 31 mm | 17 | 1.4 Ohms | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 mm | 0.945 in | 200 | 0.197 in | 5 mm | Hybrid | 1.8 ° | |||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1241-CANOPEN | Flatted Shaft, Integrated Controller | 400 mNm | 56.66 oz-in | 24 VDC | 50 °C | -20 C | 3 A | Bipolar | 1.22 in | 31 mm | 17 | 500 mOhms | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 mm | 0.945 in | 200 | 0.197 in | 5 mm | Hybrid | 1.8 ° | ||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1240-TMCL | Flatted Shaft, Integrated Controller | 440 mNm | 62.31 oz-in | 24 VDC | 50 °C | -20 C | 2 A | Bipolar | 1.22 in | 31 mm | 17 | 1.4 Ohms | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 mm | 0.945 in | 200 | 0.197 in | 5 mm | Hybrid | 1.8 ° | ||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1670-CANOPEN | Flatted Shaft, Integrated Controller | 24 VDC | 40 °C | -20 C | 0.988 in | 25.1 mm | 42 mm | 1.654 " | 1.654 in | 42 mm | 0.197 in | 5 mm | DC Motor | Brushless (BLDC) | 0.866 in | 22 mm | 180 mNm | 25.49 oz-in | 4000 RPM | Servomotor | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1140-CANOPEN | Flatted Shaft, Integrated Controller | 440 mNm | 62.3 oz-in | 24 VDC | 2 A | Bipolar | 17 | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 mm | 0.945 in | 200 | 0.197 in | 5 mm | Hybrid | 1.8 ° | 0.486 lb, 220.45 g | ||||||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1670-TMCL | Flatted Shaft, Integrated Controller | 24 VDC | 40 °C | -20 C | 0.988 in | 25.1 mm | 42 mm | 1.654 " | 1.654 in | 42 mm | 0.197 in | 5 mm | DC Motor | Brushless (BLDC) | 0.866 in | 22 mm | 180 mNm | 25.49 oz-in | 4000 RPM | Servomotor | |||||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1241-TMCL | Flatted Shaft, Integrated Controller | 400 mNm | 56.66 oz-in | 24 VDC | 50 °C | -20 C | 3 A | Bipolar | 1.22 in | 31 mm | 17 | 500 mOhms | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 mm | 0.945 in | 200 | 0.197 in | 5 mm | Hybrid | 1.8 ° | ||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1140-TMCL | Flatted Shaft, Integrated Controller | 440 mNm | 62.3 oz-in | 24 VDC | 2 A | Bipolar | 17 | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 mm | 0.945 in | 200 | 0.197 in | 5 mm | Hybrid | 1.8 ° | 0.486 lb, 220.45 g | ||||||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1141 | Flatted Shaft, Integrated Controller | 490 mNm | 69.39 oz-in | 24 VDC | 2 A | Bipolar | 17 | 42 mm | 1.654 " | 1.654 in | 42 mm | 24 mm | 0.945 in | 200 | 0.197 in | 5 mm | Hybrid | 1.8 ° | 0.486 lb, 220.45 g | ||||||||||||||
Analog Devices Inc./Maxim Integrated PD42-3-1070 | Integrated Controller, Round Shaft | 440 mNm | 62.3 oz-in | 24 VDC | 50 °C | -20 C | Connector | 1 A | Bipolar | 1.22 in | 30.99 mm | 17 | 1.4 Ohms | 42 mm | 1.654 " | 1.654 in | 42 mm | 200 | Hybrid | 1.8 ° | 0.871 lb | 395.08 g |
Description
General part information
PD42-3 Series
Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 2 A 24VDC
