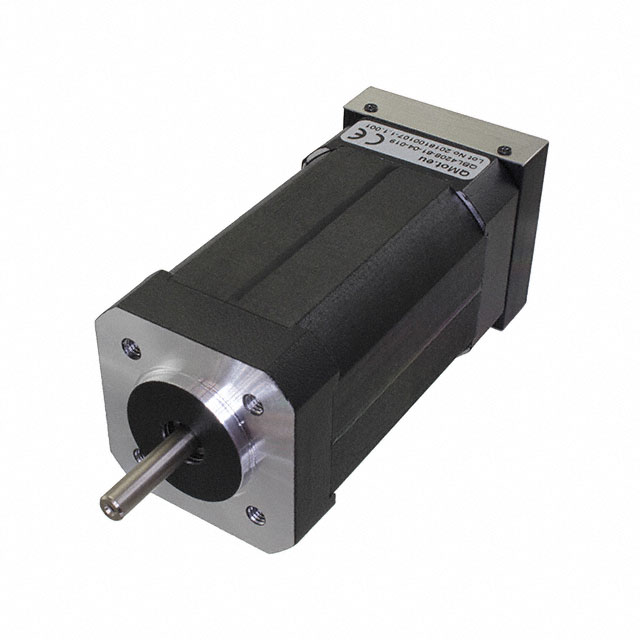

PD42-3-1670-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

SERVOMOTOR 4000 RPM 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PD42-3-1670-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

SERVOMOTOR 4000 RPM 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PD42-3-1670-CANOPEN	PD42-3 Series

Coil Resistance	-	1.4 - 500 Ohms
Coil Type	-	Bipolar
Current Rating (Amps)	-	1 - 3 A
Diameter - Shaft [diameter]	0.197 in	0.197 in
Diameter - Shaft [diameter]	5 mm	5 mm
Features	Flatted Shaft, Integrated Controller	Flatted Shaft, Integrated Controller, Round Shaft
Function	Servomotor	Servomotor
Length - Shaft and Bearing	0.866 in	0.866 in
Length - Shaft and Bearing	22 mm	22 mm
Length - Shaft and Bearing	-	24 mm
Length - Shaft and Bearing	-	0.945 in
Motor Type	Brushless (BLDC)	Brushless (BLDC)
Mounting Hole Spacing	0.988 in	0.988 - 1.22 in
Mounting Hole Spacing	25.1 mm	25.1 - 31 mm
NEMA Frame Size	-	17
Operating Temperature [Max]	40 °C	40 - 50 °C
Operating Temperature [Min]	-20 C	-20 C
RPM	4000 RPM	4000 RPM
Size / Dimension [x]	42 mm	42 mm
Size / Dimension [x]	1.654 in	1.654 in
Size / Dimension [y]	1.654 "	1.654 "
Size / Dimension [y]	42 mm	42 mm
Step Angle	-	1.8 °
Steps per Revolution	-	200
Termination Style	-	Connector
Torque - Holding (oz-in / mNm)	-	400 - 490 mNm
Torque - Holding (oz-in / mNm)	-	56.66 - 69.39 oz-in
Torque - Rated (oz-in / mNm)	180 mNm	180 mNm
Torque - Rated (oz-in / mNm)	25.49 oz-in	25.49 oz-in
Type	DC Motor	Hybrid, DC Motor
Voltage - Rated	24 VDC	2.4 - 24 V
Weight	-	0.486 - 220.45 g
Weight	-	395.08 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 393.30

PD42-3 Series

PANDRIVE NEMA17, 24V, 0.44NM

Part	Features	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Current Rating (Amps)	Coil Type	Mounting Hole Spacing	Mounting Hole Spacing	NEMA Frame Size	Coil Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Steps per Revolution	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Type	Step Angle	Motor Type	Length - Shaft and Bearing	Length - Shaft and Bearing	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	RPM	Function	Weight	Weight
Analog Devices Inc./Maxim Integrated PD42-3-1370-TMCL	Flatted Shaft, Integrated Controller	440 mNm	62.31 oz-in	2.4 V	50 °C	-20 C	Connector	2 A	Bipolar	1.22 in	31 mm	17	1.4 Ohms	42 mm	1.654 "	1.654 in	42 mm	24 mm	0.945 in	200	0.197 in	5 mm	Hybrid	1.8 °
Analog Devices Inc./Maxim Integrated PD42-3-1241-CANOPEN	Flatted Shaft, Integrated Controller	400 mNm	56.66 oz-in	24 VDC	50 °C	-20 C		3 A	Bipolar	1.22 in	31 mm	17	500 mOhms	42 mm	1.654 "	1.654 in	42 mm	24 mm	0.945 in	200	0.197 in	5 mm	Hybrid	1.8 °
Analog Devices Inc./Maxim Integrated PD42-3-1240-TMCL	Flatted Shaft, Integrated Controller	440 mNm	62.31 oz-in	24 VDC	50 °C	-20 C		2 A	Bipolar	1.22 in	31 mm	17	1.4 Ohms	42 mm	1.654 "	1.654 in	42 mm	24 mm	0.945 in	200	0.197 in	5 mm	Hybrid	1.8 °
Analog Devices Inc./Maxim Integrated PD42-3-1670-CANOPEN	Flatted Shaft, Integrated Controller			24 VDC	40 °C	-20 C				0.988 in	25.1 mm			42 mm	1.654 "	1.654 in	42 mm				0.197 in	5 mm	DC Motor		Brushless (BLDC)	0.866 in	22 mm	180 mNm	25.49 oz-in	4000 RPM	Servomotor
Analog Devices Inc./Maxim Integrated PD42-3-1140-CANOPEN	Flatted Shaft, Integrated Controller	440 mNm	62.3 oz-in	24 VDC				2 A	Bipolar			17		42 mm	1.654 "	1.654 in	42 mm	24 mm	0.945 in	200	0.197 in	5 mm	Hybrid	1.8 °								0.486 lb, 220.45 g
Analog Devices Inc./Maxim Integrated PD42-3-1670-TMCL	Flatted Shaft, Integrated Controller			24 VDC	40 °C	-20 C				0.988 in	25.1 mm			42 mm	1.654 "	1.654 in	42 mm				0.197 in	5 mm	DC Motor		Brushless (BLDC)	0.866 in	22 mm	180 mNm	25.49 oz-in	4000 RPM	Servomotor
Analog Devices Inc./Maxim Integrated PD42-3-1241-TMCL	Flatted Shaft, Integrated Controller	400 mNm	56.66 oz-in	24 VDC	50 °C	-20 C		3 A	Bipolar	1.22 in	31 mm	17	500 mOhms	42 mm	1.654 "	1.654 in	42 mm	24 mm	0.945 in	200	0.197 in	5 mm	Hybrid	1.8 °
Analog Devices Inc./Maxim Integrated PD42-3-1140-TMCL	Flatted Shaft, Integrated Controller	440 mNm	62.3 oz-in	24 VDC				2 A	Bipolar			17		42 mm	1.654 "	1.654 in	42 mm	24 mm	0.945 in	200	0.197 in	5 mm	Hybrid	1.8 °								0.486 lb, 220.45 g
Analog Devices Inc./Maxim Integrated PD42-3-1141	Flatted Shaft, Integrated Controller	490 mNm	69.39 oz-in	24 VDC				2 A	Bipolar			17		42 mm	1.654 "	1.654 in	42 mm	24 mm	0.945 in	200	0.197 in	5 mm	Hybrid	1.8 °								0.486 lb, 220.45 g
Analog Devices Inc./Maxim Integrated PD42-3-1070	Integrated Controller, Round Shaft	440 mNm	62.3 oz-in	24 VDC	50 °C	-20 C	Connector	1 A	Bipolar	1.22 in	30.99 mm	17	1.4 Ohms	42 mm	1.654 "	1.654 in	42 mm			200			Hybrid	1.8 °								0.871 lb	395.08 g

Description

General part information

PD42-3 Series

Brushless (BLDC) DC Motor Servomotor 4000 RPM 24VDC
