307-019-459-158

Active

EDAC Inc.

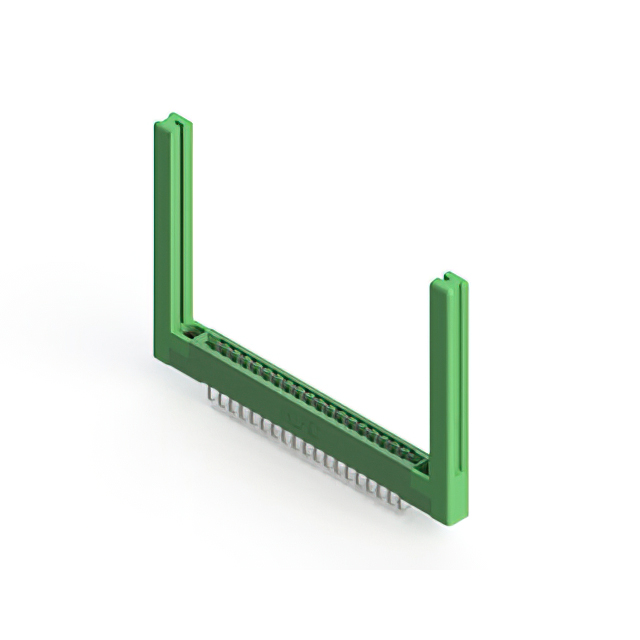

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

307-019-459-158

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-019-459-158

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	19
Number of Positions/Bay/Row [custom]	19
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-019 Series

...

Part	Contact Type	Read Out	Mounting Type	Number of Positions	Contact Material	Number of Positions/Bay/Row [custom]	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 307-019-447-102	Semi Bellows	Single	Through Hole	19	Copper Alloy	19	1	1	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge
EDAC Inc. 307-019-521-108	Semi Bellows	Dual	Through Hole	38	Copper Alloy	19	1	2			4-40 Flush Mount Threaded Insert Top Opening	Gold	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge	10 Áin	0.25 Ám
EDAC Inc. 307-019-453-103	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge
EDAC Inc. 307-019-431-107	Semi Bellows	Single	Through Hole	19	Copper Alloy	19	1	1			Flush Mount M3 Threaded Insert Top Opening	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge
EDAC Inc. 307-019-441-112	Semi Bellows	Dual	Through Hole	38	Copper Alloy	19	1	2	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge
EDAC Inc. 307-019-453-102	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge
EDAC Inc. 307-019-457-168	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2			4-40 Flush Mount Threaded Insert Top Opening	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge			Card Guides
EDAC Inc. 307-019-557-108	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2			4-40 Flush Mount Threaded Insert Top Opening	Gold	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge	10 Áin	0.25 Ám
EDAC Inc. 307-019-459-158	Semi Bellows	Single	Through Hole Right Angle	19	Copper Alloy	19	1	1			4-40 Flush Mount Threaded Insert Top Opening	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge			Card Guides
EDAC Inc. 307-019-559-158	Semi Bellows	Single	Through Hole Right Angle	19	Copper Alloy	19	1	1			4-40 Flush Mount Threaded Insert Top Opening	Gold	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge	10 Áin	0.25 Ám	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.11
Newark	Each	1	$ 18.71
		100	$ 12.11
		250	$ 10.91
		500	$ 10.08
		1000	$ 8.16

Description

General part information

307-019 Series

19 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Drawing EN

Datasheet
