01064-077

Active

Sensata-BEI Sensors

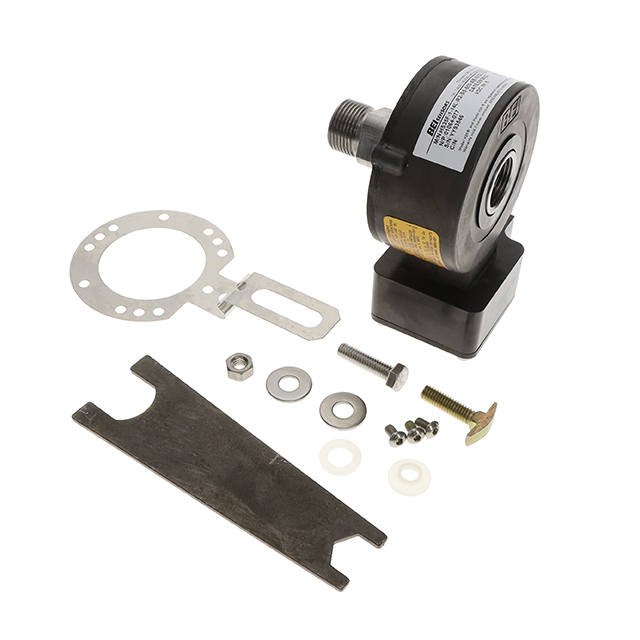

ROTARY ENCODER OPTICAL 500PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 500PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2466.39

General part information

ROTARY ENCODER OPTICAL 500PPR

Technical documentation and resources

No documents available

Specification	01064-077	01064 Series

Actuator Type	Hole for Shaft	Hole for Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Optical	Optical
Mounting Type	Chassis Mount, Motors	Chassis Mount, Motors
Orientation	User Selectable	User Selectable
Output Type	Quadrature (Incremental)	Quadrature (Incremental)
Pulses per Revolution	500	100 - 1000
Rotational Life (Cycles Min) [Min]	7.5B	7.5B
Termination Style	Terminal Block, Straight - Push In	Connector, Terminal Block, Straight - Push In
Voltage - Supply	-	9 V
Voltage - Supply	-	5 V

Part	Output Type	Pulses per Revolution	Encoder Type	Orientation	Actuator Type	Termination Style	Rotational Life (Cycles Min) [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Sensata-BEI Sensors 01064-088	Quadrature (Incremental)	100	Optical	User Selectable	Hole for Shaft	Connector	7.5B	Chassis Mount
Sensata-BEI Sensors 01064-077	Quadrature (Incremental)	500	Optical	User Selectable	Hole for Shaft	Terminal Block, Straight - Push In	7.5B	Chassis Mount, Motors
Sensata-BEI Sensors 01064-073	Quadrature (Incremental)	1000	Optical	User Selectable	Hole for Shaft	Connector	7.5B	Chassis Mount	9 V	5 V
