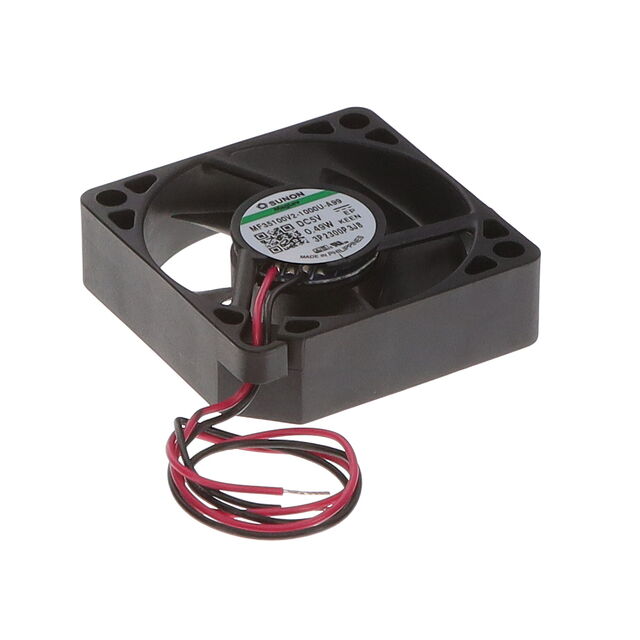

MF35100V2-1000U-A99

Active

Sunon Fans

FAN AXIAL 35X10MM VAPO 5VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 35X10MM VAPO 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MF35100V2-1000U-A99

Air Flow	0.182 m³/min
Air Flow	6.5 CFM
Approval Agency	cURus, TUV
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	21.8 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.4 W
RPM	7500 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	0.13 in H2O
Static Pressure	32.4 Pa
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	2.5 V
Weight	0.024 lb
Weight	10.89 g
Width [y]	10 mm

FAN AXIAL 35X10MM VAPO 5VDC WIRE

Part	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Air Flow	Air Flow	Termination	Lifetime @ Temp.	Power (Watts)	Voltage - Rated	Fan Type	RPM	Features	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Material - Blade	Noise	Approval Agency
Sunon Fans MF35100V2-1000U-A99	35 mm	35 mm	0.024 lb	10.89 g	0.182 m³/min	6.5 CFM	2 Wire Leads	70000 Hrs	0.4 W	5 V	Tubeaxial	7500 RPM	Auto Restart	10 mm	2.5 V	6 VDC	70 °C	70 °C	-10 °C	-10 °C	0.13 in H2O	32.4 Pa	Polybutylene Terephthalate (PBT)	21.8 dB(A)	cURus, TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 35mm L x 35mm H Vapo-Bearing™ 6.5 CFM (0.182m³/min) 2 Wire Leads
