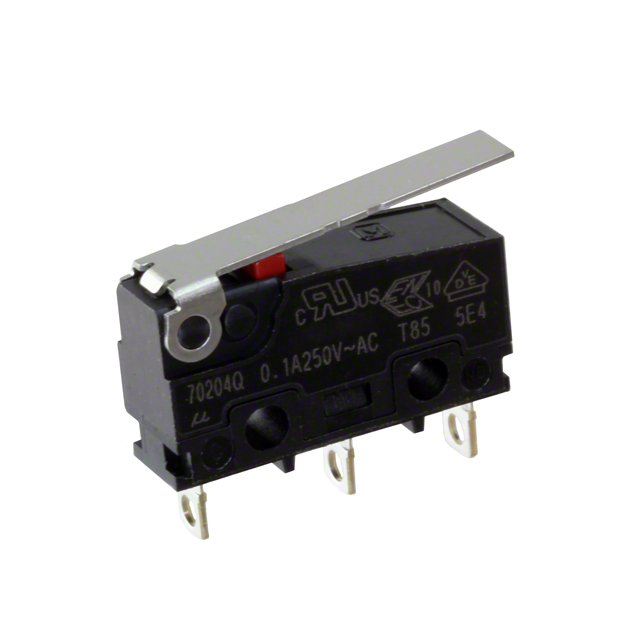

AVT3224613
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
AVT3224613
ActivePanasonic Electric Works
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVT3224613 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.8 mm |
| Differential Travel | 0.031 " |
| Electrical Life | 200000 Cycles |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 35 gf |
| Operating Position | 8.8 mm |
| Operating Position | 0.345 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.2 mm |
| Overtravel | 0.047 " |
| Pretravel | 0.11 in |
| Pretravel | 2.8 mm |
| Release Force | 3.059 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.44 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.05 | |||
| 100 | $ 0.99 | |||
| 300 | $ 0.90 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.82 | |||
| 5000 | $ 0.74 | |||
Description
General part information
AVT322 Series
Switch SPDT Chassis Mount
