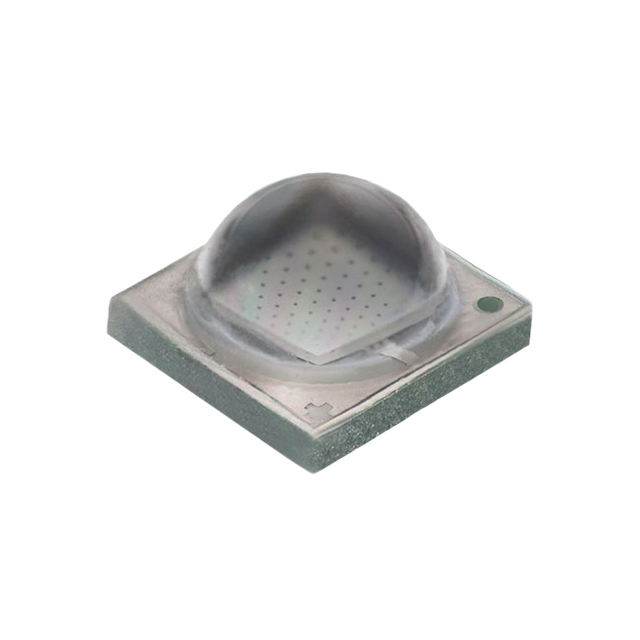

XPGDRY-L1-0000-00501

Active

Cree LED

HIGH BRIGHTNESS LED, XLAMP XP-G3 SERIES, BLUE, 451 NM, 130 °, 2 A

Search across all available documentation for this part.

Active

Cree LED

HIGH BRIGHTNESS LED, XLAMP XP-G3 SERIES, BLUE, 451 NM, 130 °, 2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Xlamp® XP-G3 Horticulture Blue 451nm (Typ) 1414 (3535 Metric)

Specification	XPGDRY-L1-0000-00501	XPGDRY Series

Color	Blue	Blue
Current - Max [Max]	2 A	2 A
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	2.39 mm	2.39 mm
Height - Seated (Max) [Max] [z]	0.094 "	0.094 "
Luminous Flux @ Current/Temperature	705 mW	658 - 705 mW
Luminous Flux @ Current/Temperature	-	635 mW
Luminous Flux @ Current/Temperature	-	680 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.45 mm	3.45 mm
Size / Dimension [x]	0.136 in	0.136 in
Size / Dimension [y]	0.136 in	0.136 in
Size / Dimension [y]	3.45 mm	3.45 mm
Supplier Device Package	2-SMD	2-SMD
Viewing Angle	130 °	130 °
Voltage - Forward (Vf) (Typ)	2.82 V	2.82 V
Wavelength	451 nm	451 nm

Part	Viewing Angle	Color	Current - Max [Max]	Current - Test	Supplier Device Package	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Luminous Flux @ Current/Temperature	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Wavelength	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]
Cree LED XPGDRY-L1-0000-00501	130 °	Blue	2 A	350 mA	2-SMD	3535 Metric	1414	2.82 V	2.39 mm	0.094 "	Surface Mount	705 mW	3.45 mm	0.136 in	0.136 in	3.45 mm	451 nm
Cree LED XPGDRY-L1-0000-00401	130 °	Blue	2 A	350 mA	2-SMD	3535 Metric	1414	2.82 V	2.39 mm	0.094 "	Surface Mount	658 mW	3.45 mm	0.136 in	0.136 in	3.45 mm	451 nm	635 mW	680 mW
