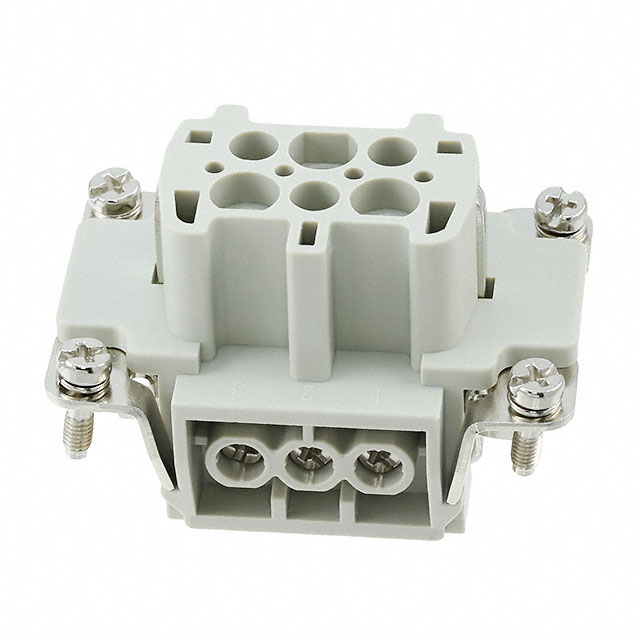

HE-006-F
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 6POS SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HE-006-F | HE-006 Series |
|---|---|---|
| Connector Type | - | Insert without Contacts |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Male, Female |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Termination Style | Screw | Screw, Crimp |
| Voltage Rating | 500 V | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.99 | |
| 10 | $ 8.71 | |||
| 30 | $ 8.48 | |||
| 50 | $ 8.25 | |||
| 100 | $ 7.75 | |||
| 250 | $ 7.70 | |||
| 500 | $ 7.24 | |||
| 1000 | $ 6.46 | |||
HE-006 Series
INSERT MALE 6POS SCREW
| Part | Termination Style | Gender | Material Flammability Rating | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Current Rating (Amps) | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HE-006-M | Screw | Male | UL94 V-0 | Polycarbonate (PC) | 125 °C | -40 °C | 500 V | 16 A | 6 | |
TE Connectivity AMP Connectors HE-006-MC | Crimp | Male | UL94 V-0 | Polycarbonate (PC) | 125 °C | -40 °C | 500 V | 16 A | 6 | Insert without Contacts |
TE Connectivity AMP Connectors HE-006-FC | Crimp | Female | UL94 V-0 | Polycarbonate (PC) | 125 °C | -40 °C | 500 V | 16 A | 6 | Insert without Contacts |
TE Connectivity AMP Connectors HE-006-F | Screw | Female | UL94 V-0 | Polycarbonate (PC) | 125 °C | -40 °C | 500 V | 16 A | 6 |
Description
General part information
HE-006 Series
Female Insert 6 Position Screw
