HE-006-FC

Active

TE Connectivity AMP Connectors

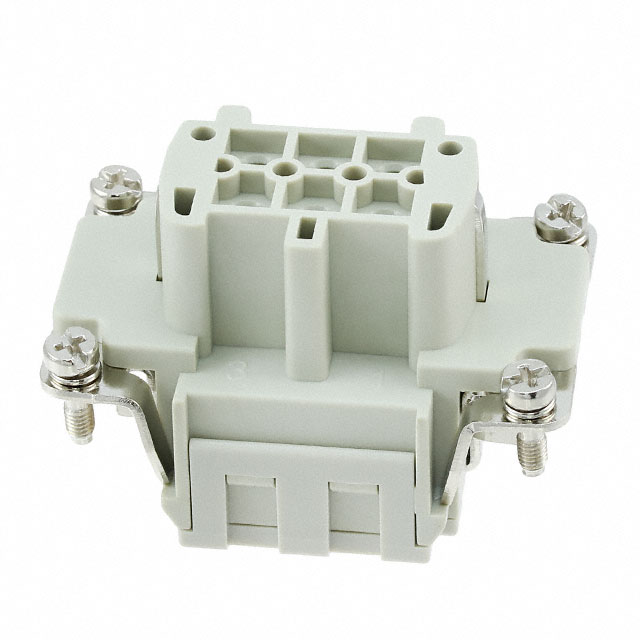

INSERT FEMALE 6POS CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

INSERT FEMALE 6POS CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HE-006-FC	HE-006 Series

Connector Type	Insert without Contacts	Insert without Contacts
Current Rating (Amps)	16 A	16 A
Gender	Female	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	6	6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Crimp	Screw, Crimp
Voltage Rating	500 V	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

INSERT MALE 6POS SCREW

Part	Termination Style	Gender	Material Flammability Rating	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Current Rating (Amps)	Number of Positions	Connector Type
TE Connectivity AMP Connectors HE-006-M	Screw	Male	UL94 V-0	Polycarbonate (PC)	125 °C	-40 °C	500 V	16 A	6
TE Connectivity AMP Connectors HE-006-MC	Crimp	Male	UL94 V-0	Polycarbonate (PC)	125 °C	-40 °C	500 V	16 A	6	Insert without Contacts
TE Connectivity AMP Connectors HE-006-FC	Crimp	Female	UL94 V-0	Polycarbonate (PC)	125 °C	-40 °C	500 V	16 A	6	Insert without Contacts
TE Connectivity AMP Connectors HE-006-F	Screw	Female	UL94 V-0	Polycarbonate (PC)	125 °C	-40 °C	500 V	16 A	6

General part information

Female Insert without Contacts 6 Position Crimp
