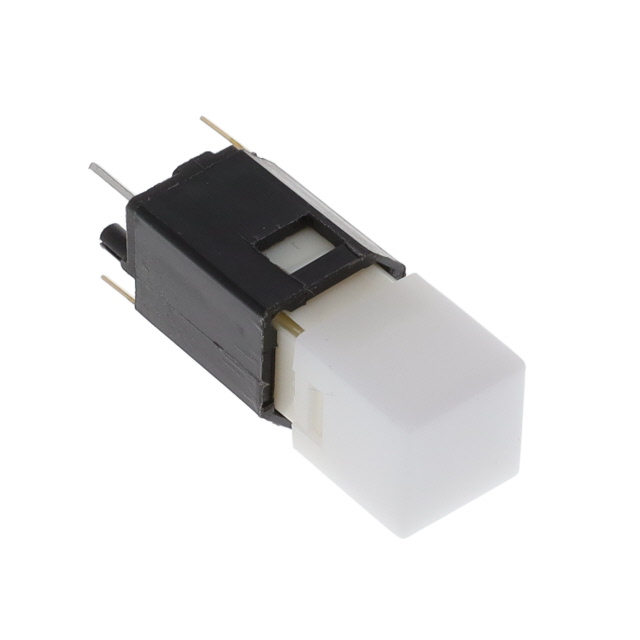

LP2S2WHTYEL-N

Active

E-Switch

SWITCH PUSH SPST-NO 1MA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NO 1MA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	LP2S2WHTYEL-N

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPST-NO
Color - Actuator/Cap	White
Current Rating (Amps)	1 mA
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	1.7 VDC
Mechanical Life	300000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	20 V

Part	Switch Function	Illumination Voltage (Nominal)	Mounting Type	Voltage Rating - DC	Illumination Type, Color	Current Rating (Amps)	Actuator Type	Circuit	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Termination Style	Type	Color - Actuator/Cap
E-Switch LP2S2WHTYEL-N	Off-Mom	1.7 VDC	Through Hole	20 V	LED Yellow	1 mA	Button Square	SPST-NO	300000 Cycles	-20 C	70 °C	No Marking	PC Pin	Illuminated Standard	White
E-Switch LP2S2WHTRED-N	Off-Mom	1.5 VDC	Through Hole	20 V	LED Red	1 mA	Button Square	SPST-NO	300000 Cycles	-20 C	70 °C	No Marking	PC Pin	Illuminated Standard	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
