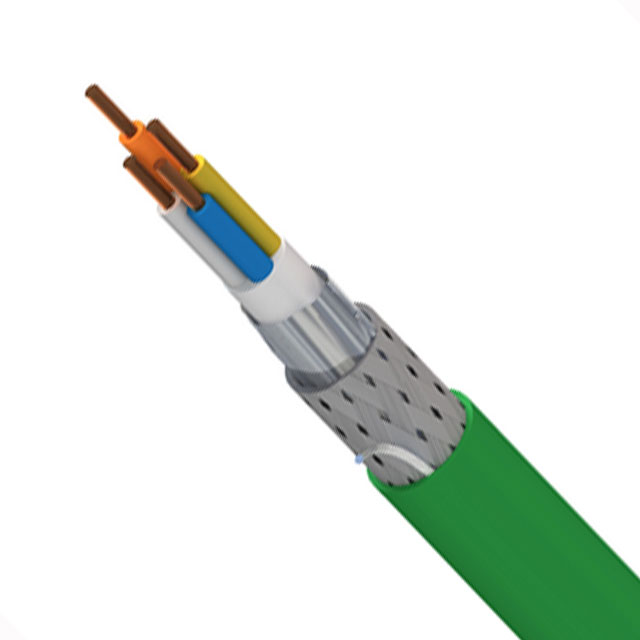

7960A 1SW2000

Active

Belden Inc.

CABLE CAT5E 4COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 4COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	7960A 1SW2000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Flame Retardant, Rip Cord, UV Resistant, Oil Resistant
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Green
Length [x]	609.6 m
Length [x]	2000 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 21047
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	22 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket Color	Shield Material	Conductor Material	Features	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Coverage	Jacket (Insulation) Material	Voltage	Usage	Conductor Strand	Number of Conductors	Ratings	Wire Gauge
Belden Inc. 7960A 1SW2000	-40 °C	80 C	Braid Foil	Green	Aluminum Copper Tinned	Copper Bare	Flame Retardant Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat5e	609.6 m	2000 ft	6.73 mm	0.265 in	Polyolefin (PO)	85 % 100 %	Poly-Vinyl Chloride (PVC)	300 V	Industrial Network	Solid	4	UL Style 21047	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2000	$ 2.01

General part information

4 (2 Pair) Conductor Multi-Pair, Cat5e Cable Green 22 AWG Foil, Braid 2000.0' (609.6m)
