A3CCH-5018G
ActiveTE Connectivity AMP Connectors
IDC CABLE - AKC50H/AE50G/AKC50H
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3CCH-5018G | A3CCH Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Features | Polarizing Key | Polarizing Key |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 457.2 mm | 457.2 - 914.4 mm |
| Length [x] | 1.5 ft | 1.5 - 3 ft |
| Number of Positions | 50 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.36 | |
| 10 | $ 11.07 | |||
| 25 | $ 10.27 | |||
| 50 | $ 9.71 | |||
| 100 | $ 9.18 | |||
| 250 | $ 8.52 | |||
| 500 | $ 8.06 | |||
| 1000 | $ 7.63 | |||
A3CCH Series
IDC CABLE - AKC14H/AE14M/AKC14H
| Part | Cable Termination | Length | Length | Length | Connector Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Shielding | Number of Positions | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Color | Number of Rows | Features | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3CCH-1406M | IDC | 152.4 mm | 6 " | 0.5 ' | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 14 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | Polarizing Key | |||
TE Connectivity AMP Connectors A3CCH-2606M | IDC | 152.4 mm | 6 " | 0.5 ' | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 26 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | Polarizing Key | |||
TE Connectivity AMP Connectors A3CCH-6406G | IDC | 152.4 mm | 6 " | 0.5 ' | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 64 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | Polarizing Key | ||||
TE Connectivity AMP Connectors A3CCH-1406G | IDC | 152.4 mm | 6 " | 0.5 ' | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 14 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | Polarizing Key | ||||
TE Connectivity AMP Connectors A3CCH-4436M | IDC | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 44 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | Polarizing Key | 3 ft | 914.4 mm | ||||
TE Connectivity AMP Connectors A3CCH-2418M | IDC | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 24 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | Polarizing Key | 1.5 ft | 457.2 mm | ||||
TE Connectivity AMP Connectors A3CCH-6036M | IDC | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 60 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | Polarizing Key | 3 ft | 914.4 mm | ||||
TE Connectivity AMP Connectors A3CCH-1636G | IDC | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | Polarizing Key | 3 ft | 914.4 mm | 16 | |||||
TE Connectivity AMP Connectors A3CCH-1636M | IDC | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | Multiple, Ribbon | 2 | Polarizing Key | 3 ft | 914.4 mm | 16 | ||||
TE Connectivity AMP Connectors A3CCH-5018G | IDC | Socket to Socket | Gold | 15 µin | 0.38 µm | Unshielded | 50 | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | Polarizing Key | 1.5 ft | 457.2 mm |
Description
General part information
A3CCH Series

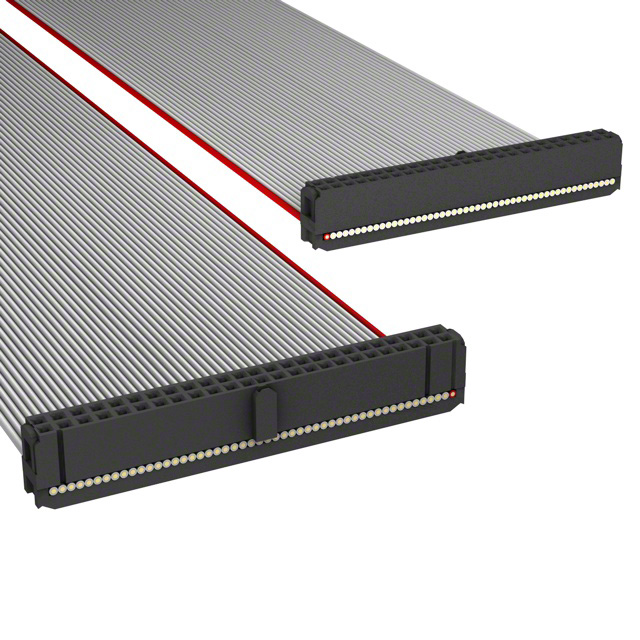

50 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
